GEN 2.3 Chart symbols
1 Aerodromes
1.1 Charts other than approach charts

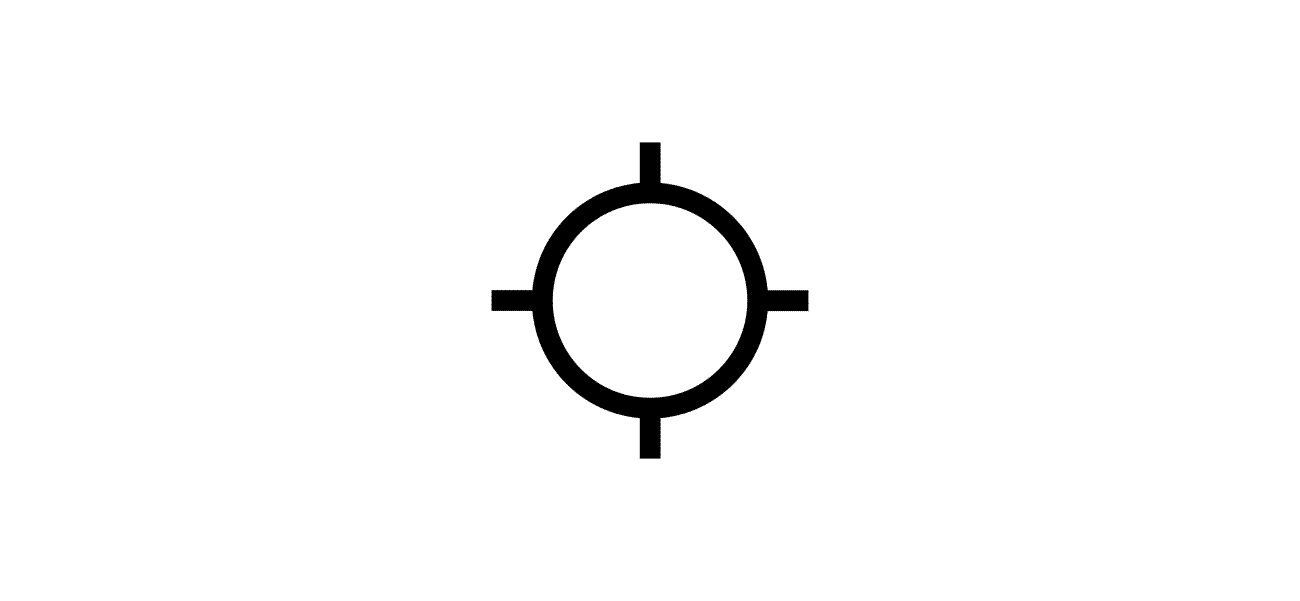

| Civil Aerodrome (land) |
 |
|---|
| Military Aerodrome (land) |
 |
|---|
| Joint civil and military Aerodrome (land) |
 |
|---|

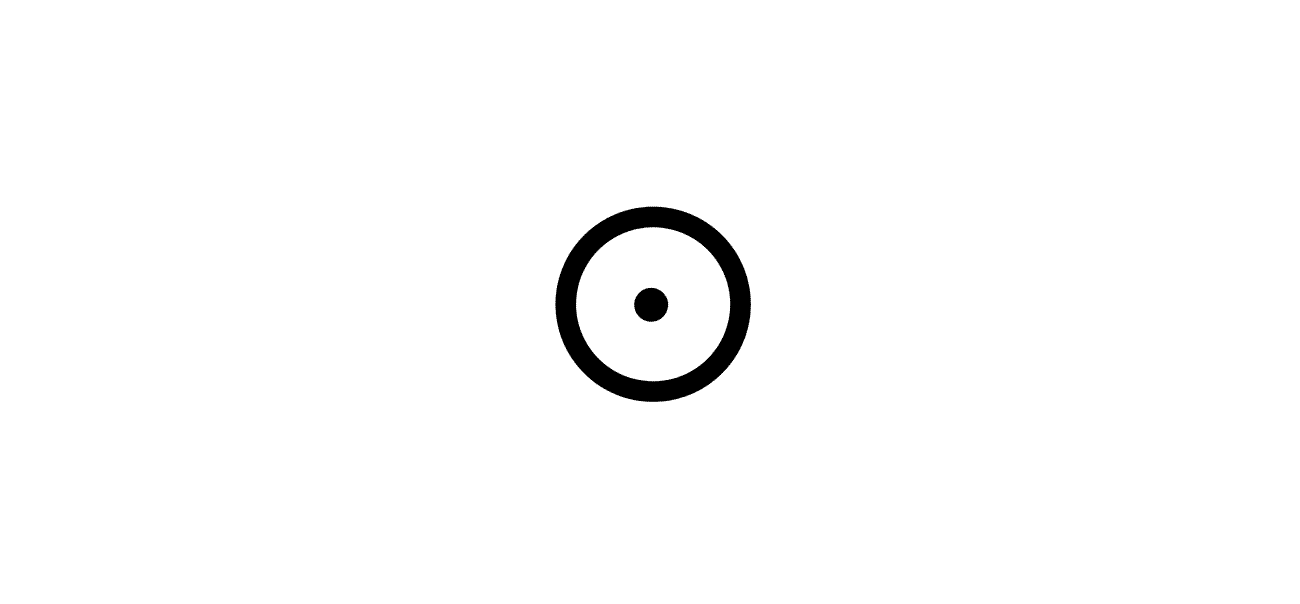

| Emergency Aerodrome or Aerodrome with no facilities |
 |
|---|

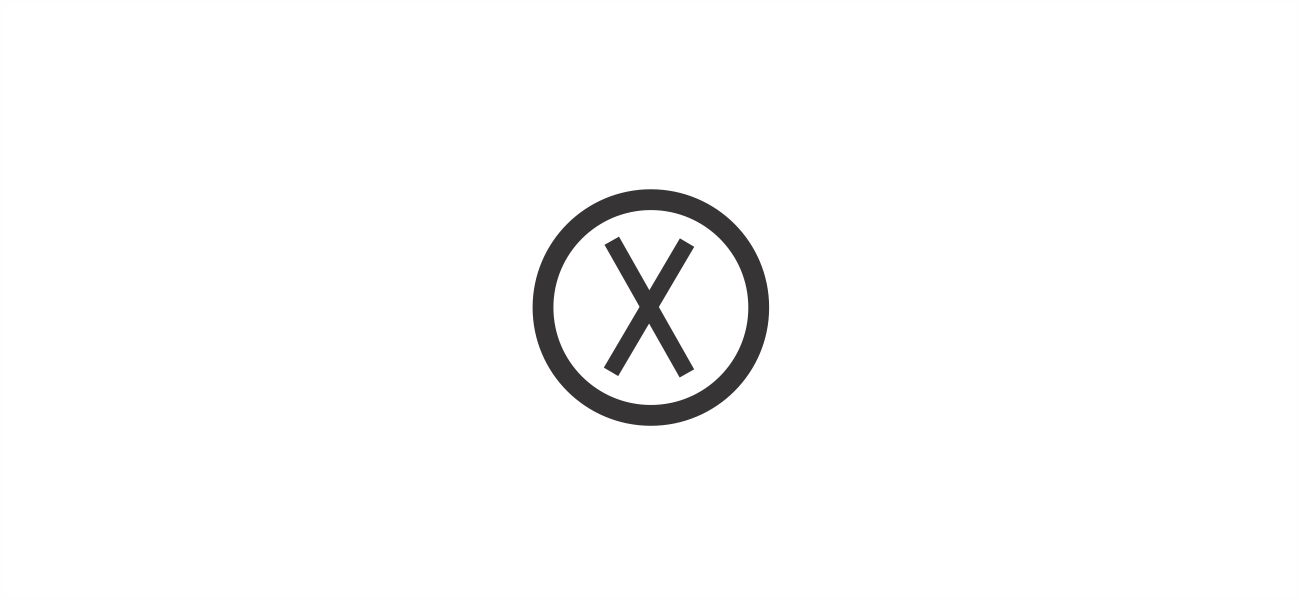

| Abandoned or closed Aerodrome |
 |
|---|
1.2 Approach charts

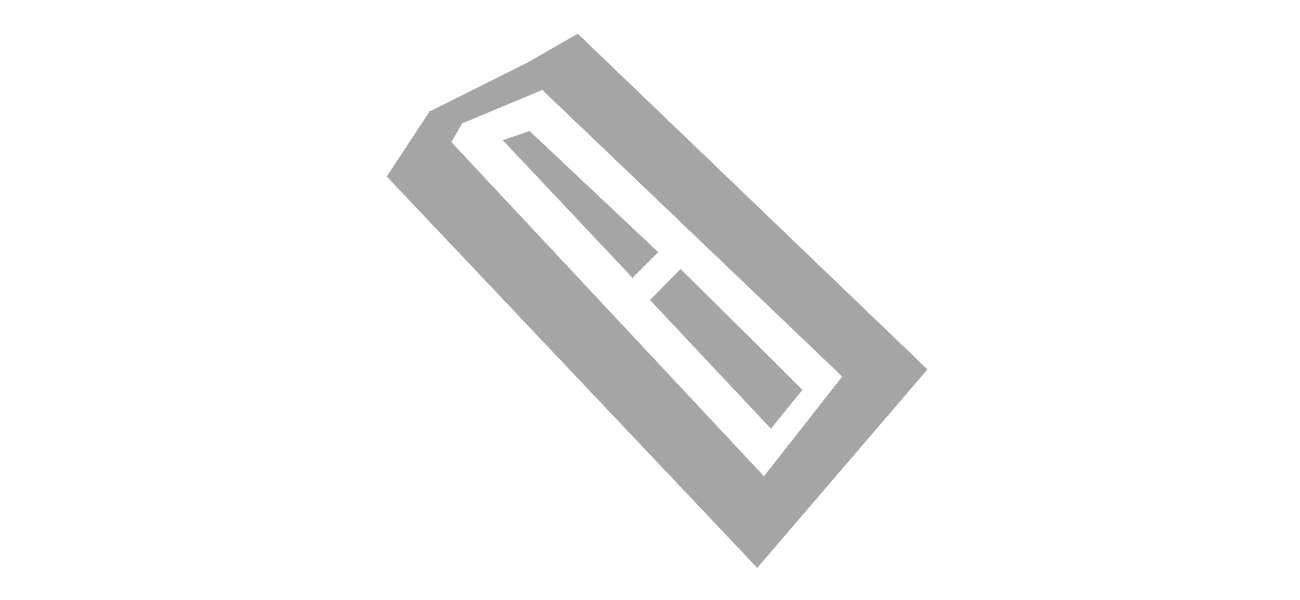

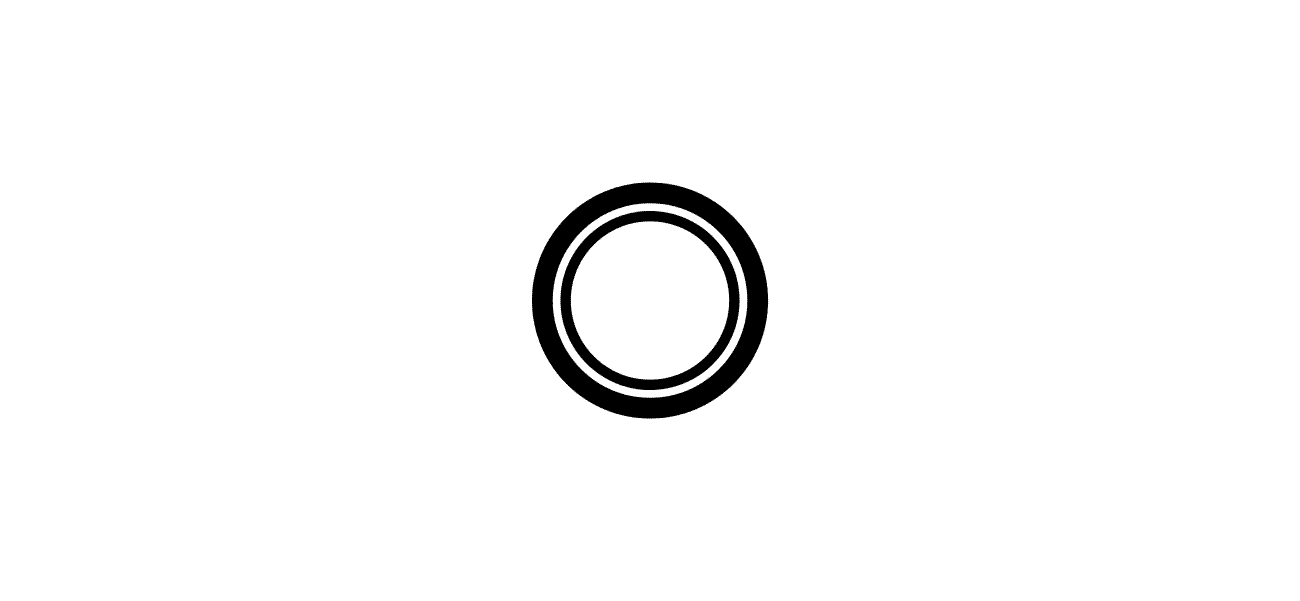

| The Aerodrome on which the procedure is based |
 |
|---|
| Aerodromes affecting the traffic pattern on the Aerodrome on which the procedures is based |
 |
|---|

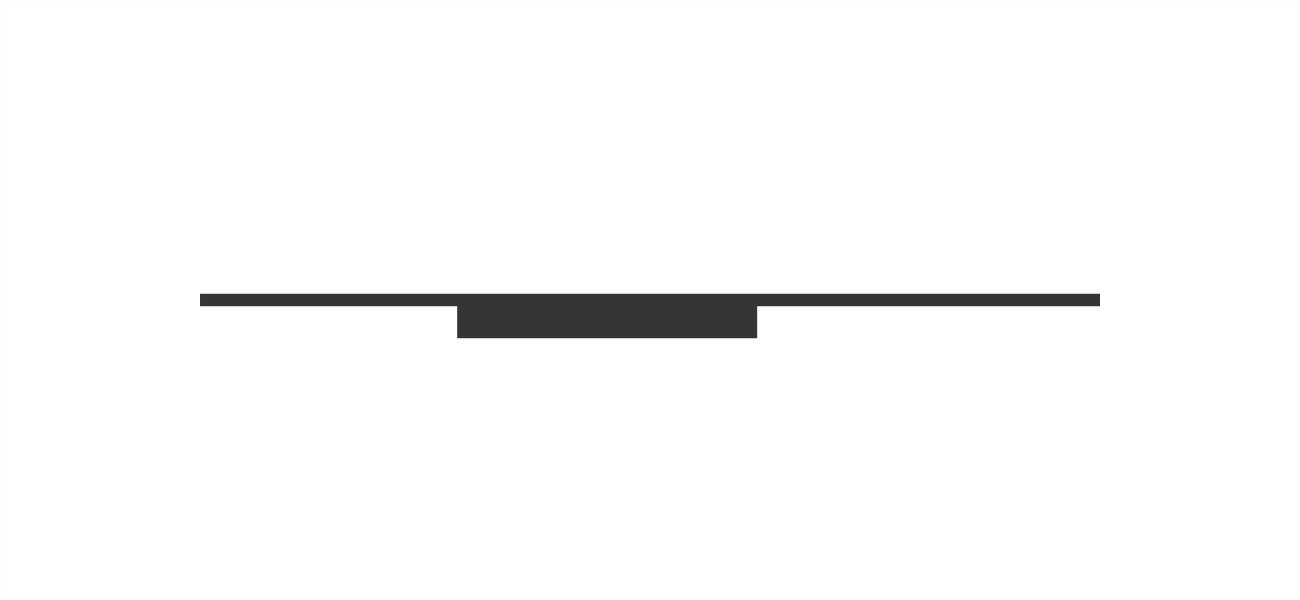

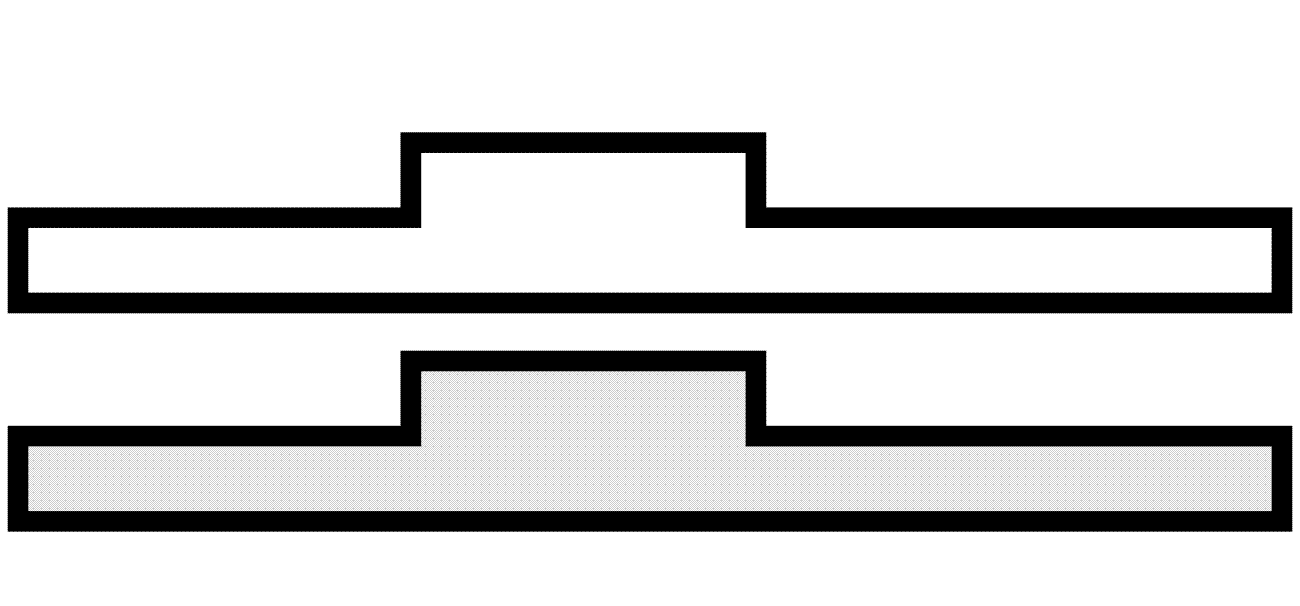

| Profile for runway |
 |
|---|

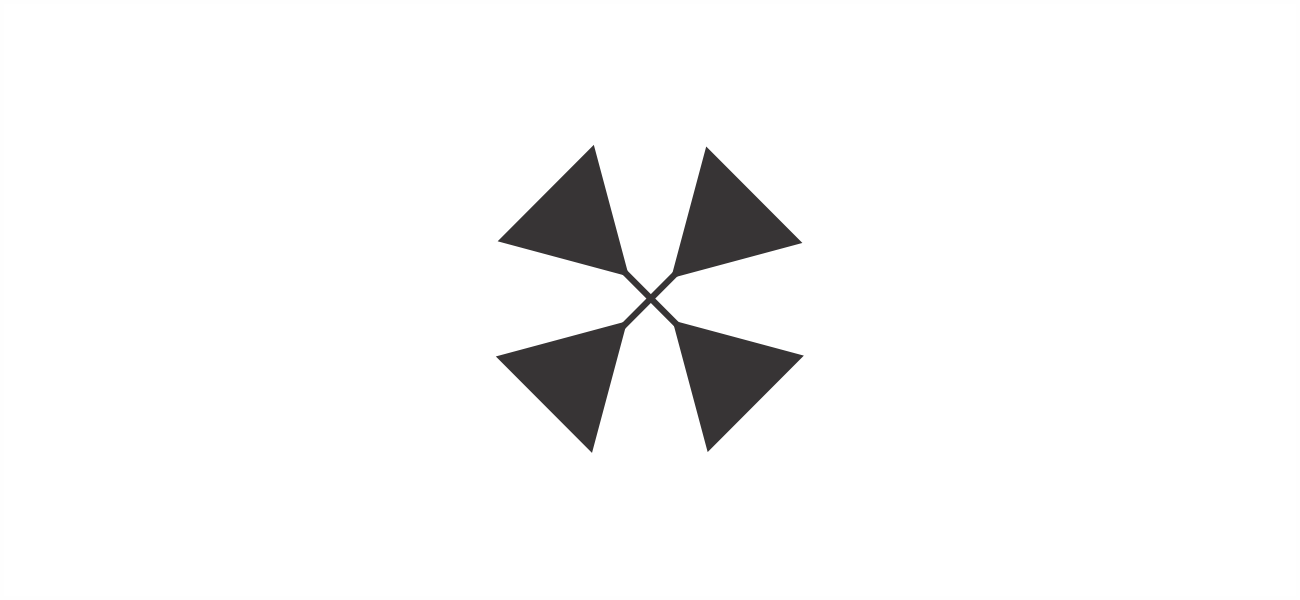

| Profile for FAF/FAP |
 |
|---|
1.3 Aerodrome charts

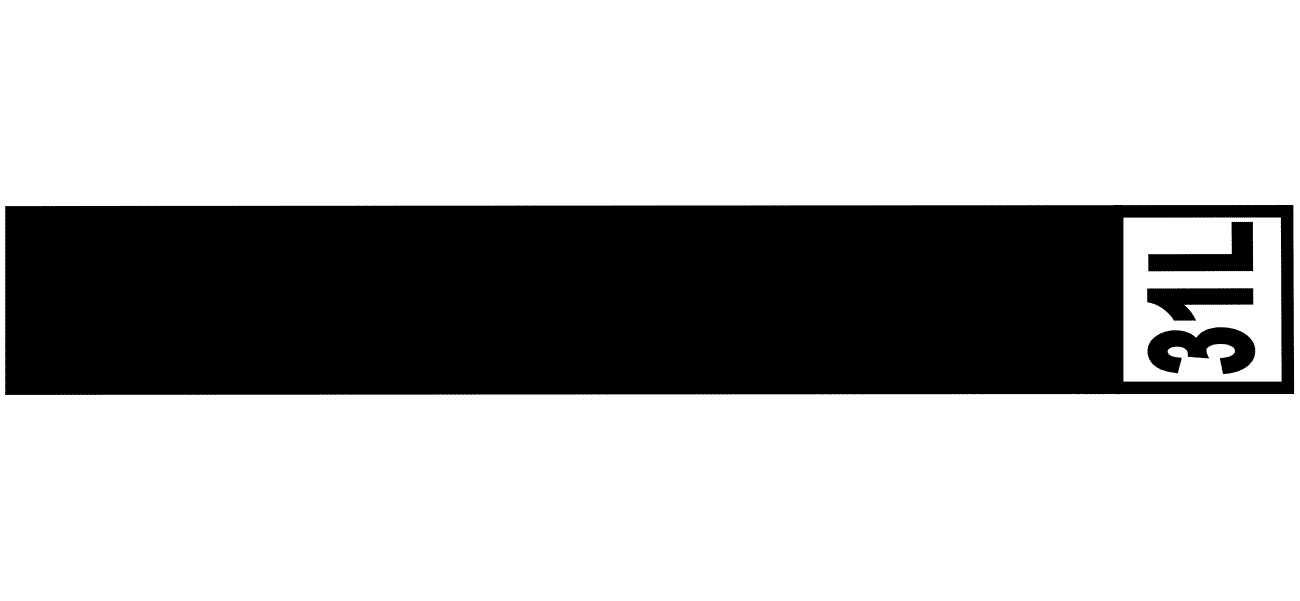

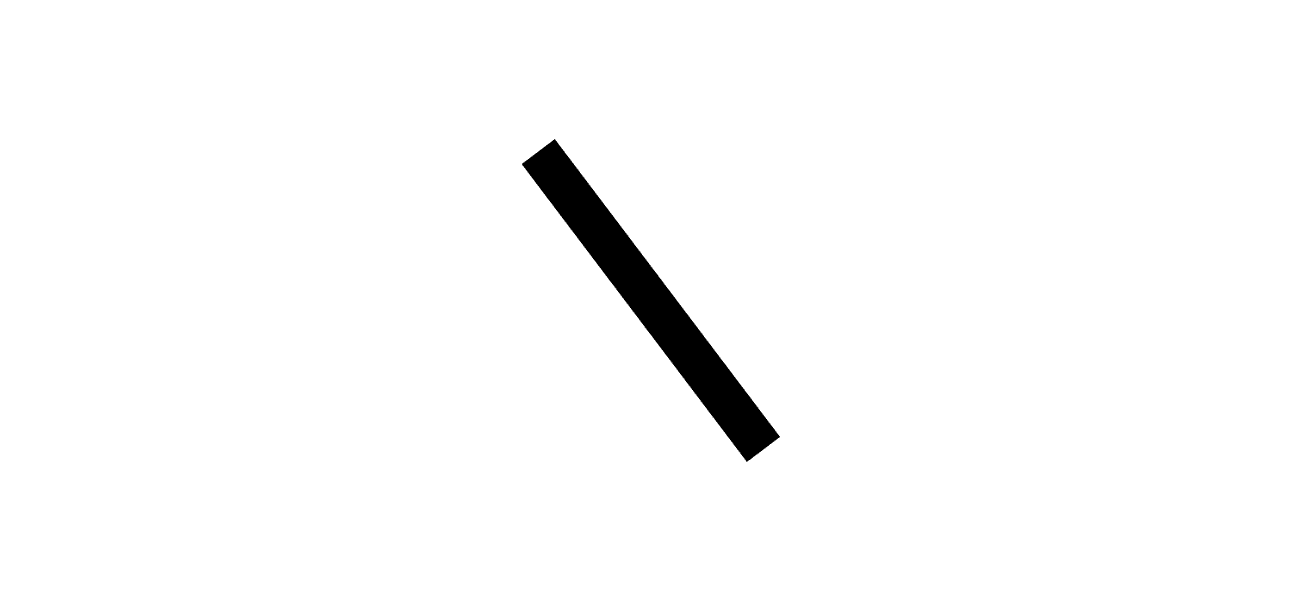

| Hard surface runway |
 |
|---|

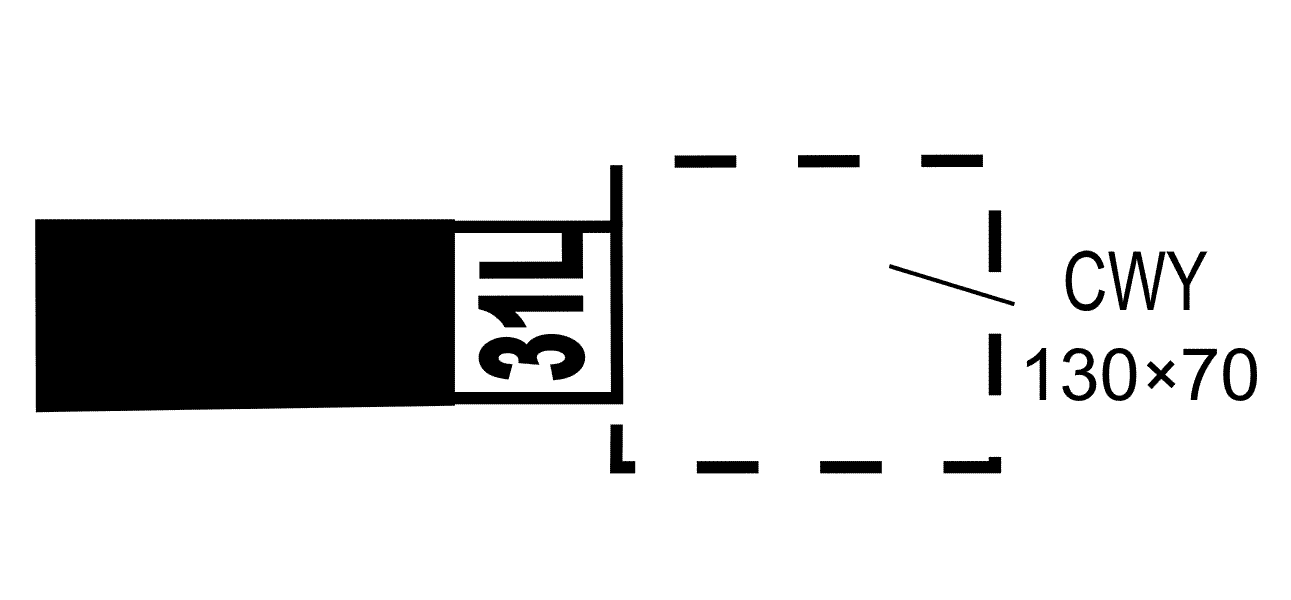

| Clearway |
 |
|---|
2 Aerodrome installations and lights

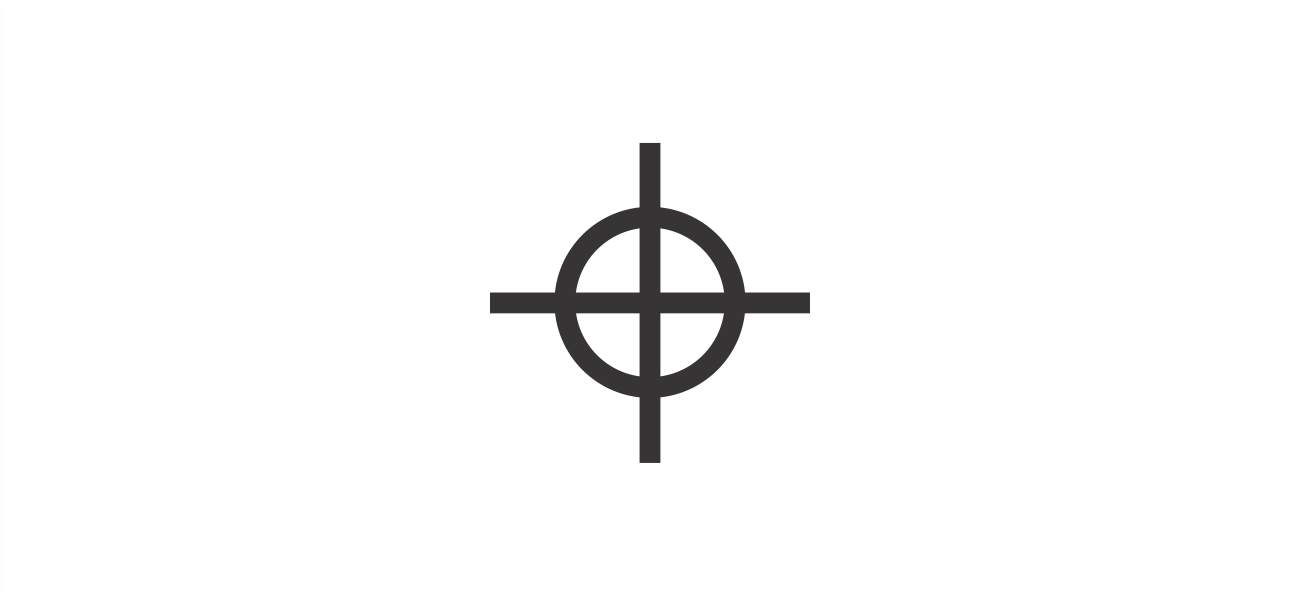

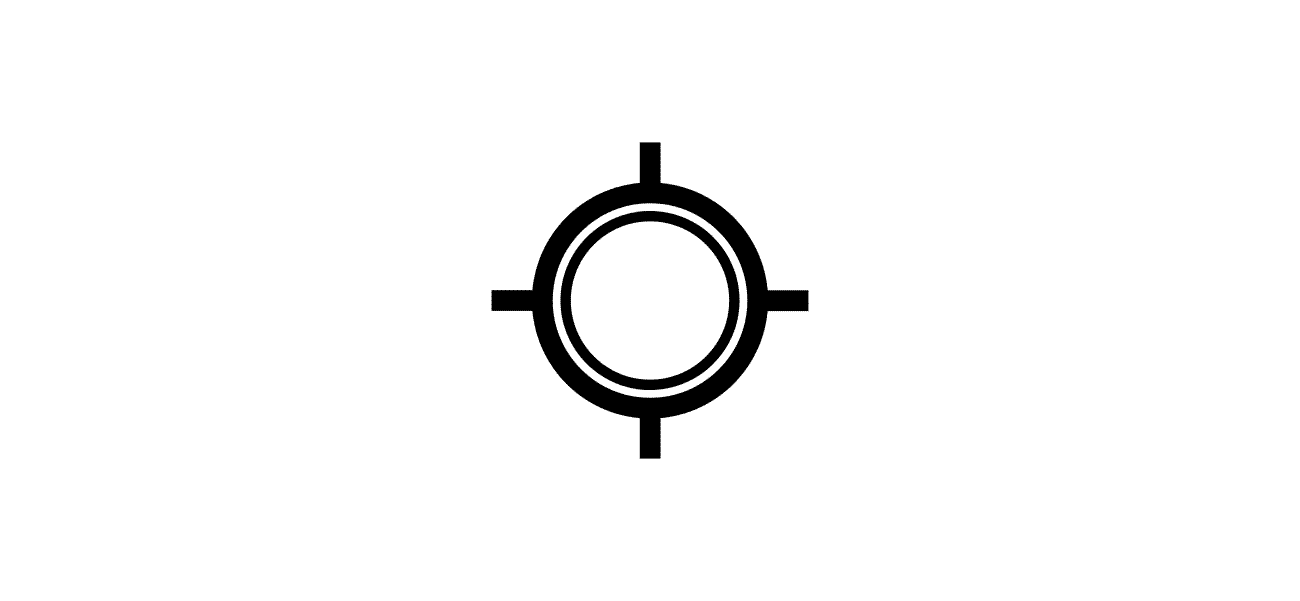

| Aerodrome Reference Point (ARP) |
 |
|---|

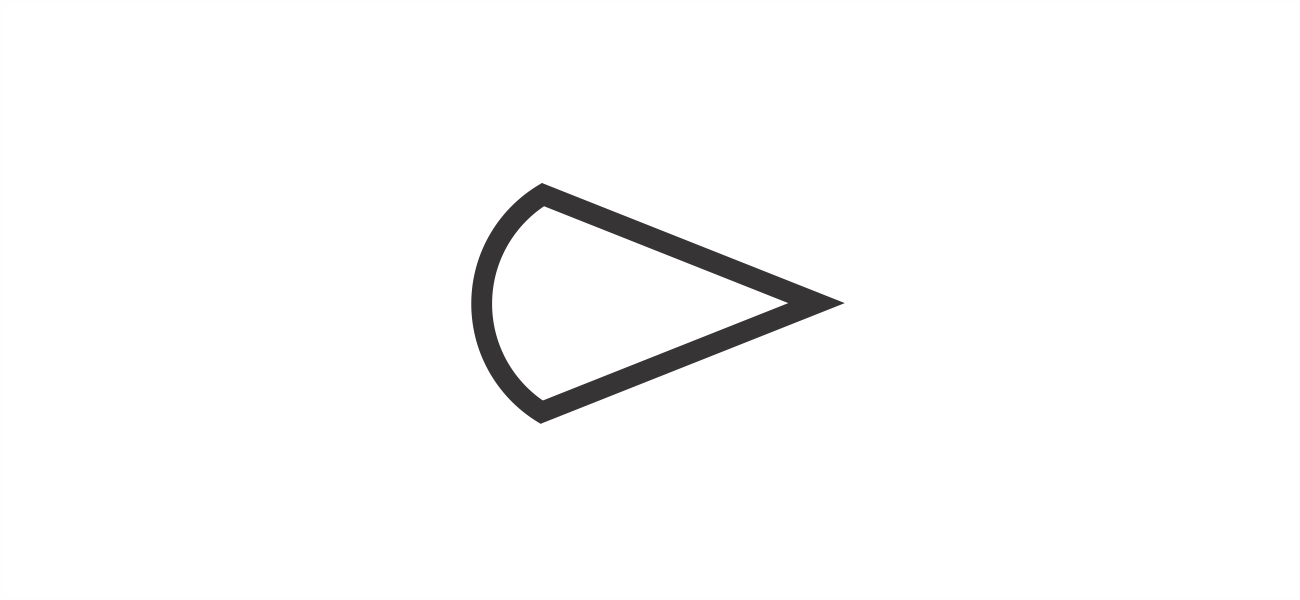

| Runway Visual Range (RVR) observation site |
 |
|---|
| Taxiways and parking areas |
 |
|---|

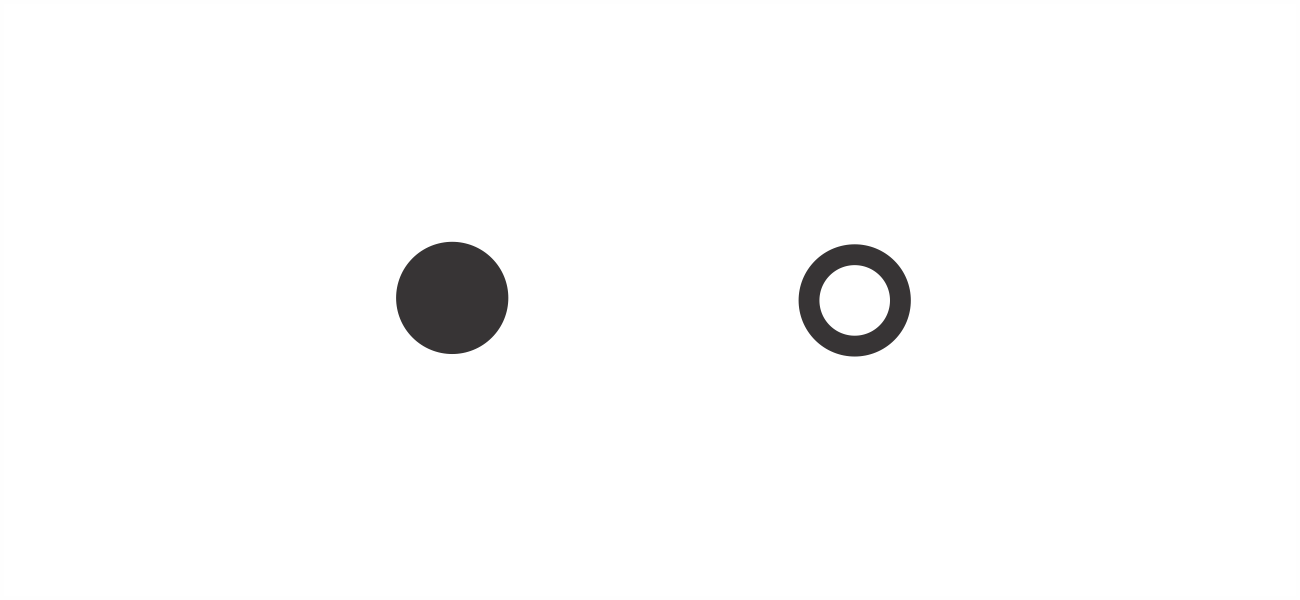

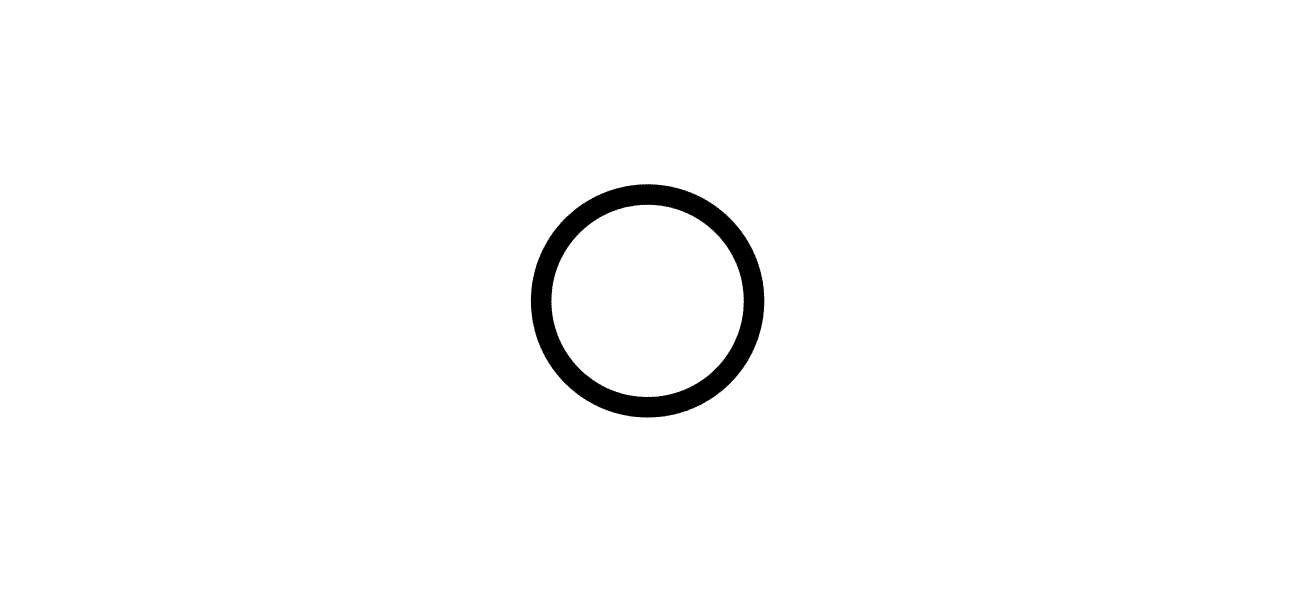

| Point light |
 |
|---|

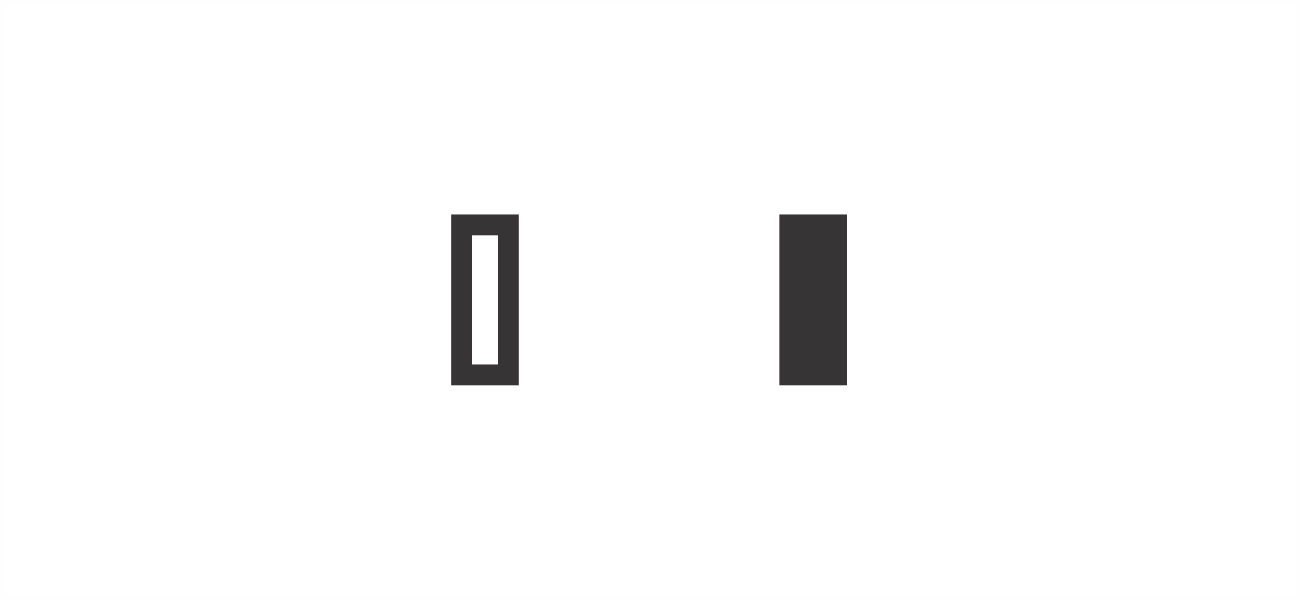

| Barrette |
 |

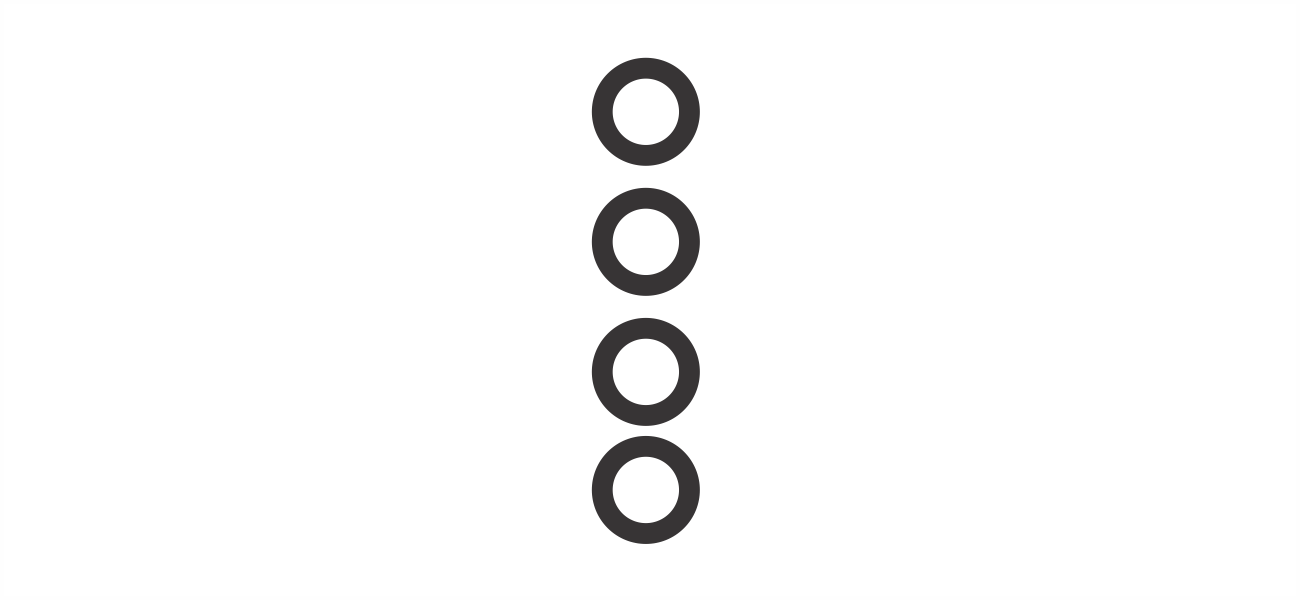

|---|
| Threshold lights |
 |
|---|

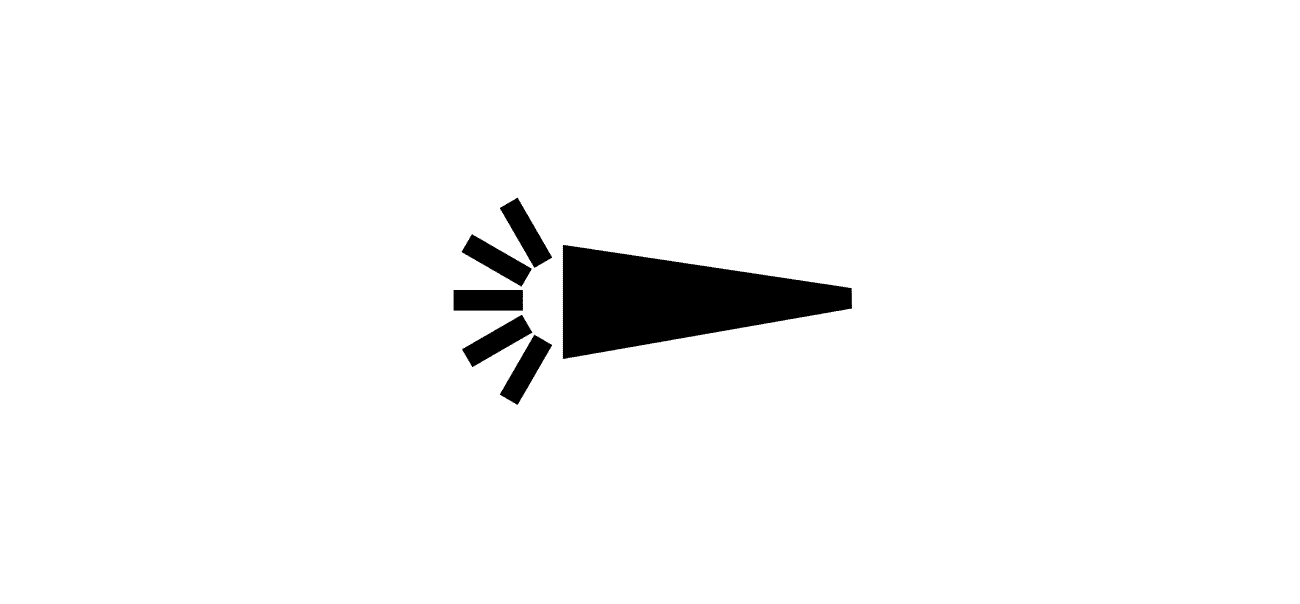

| Wind direction indicator (lighted) |
 |
|---|

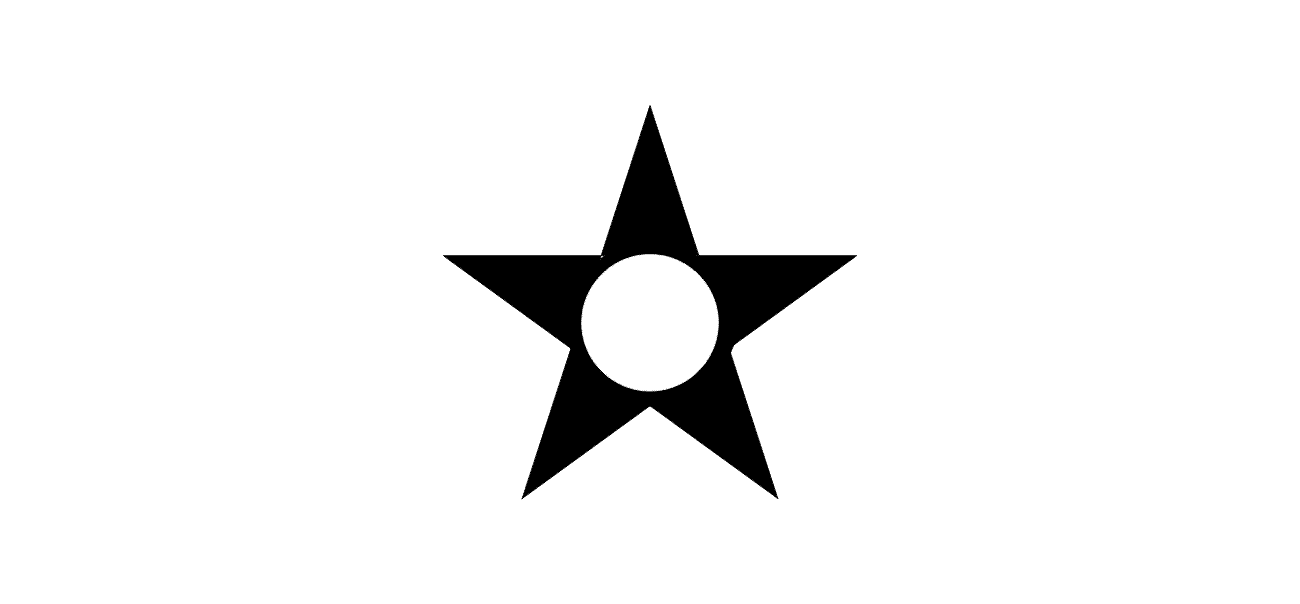

| Aeronautical ground light |
 |
|---|

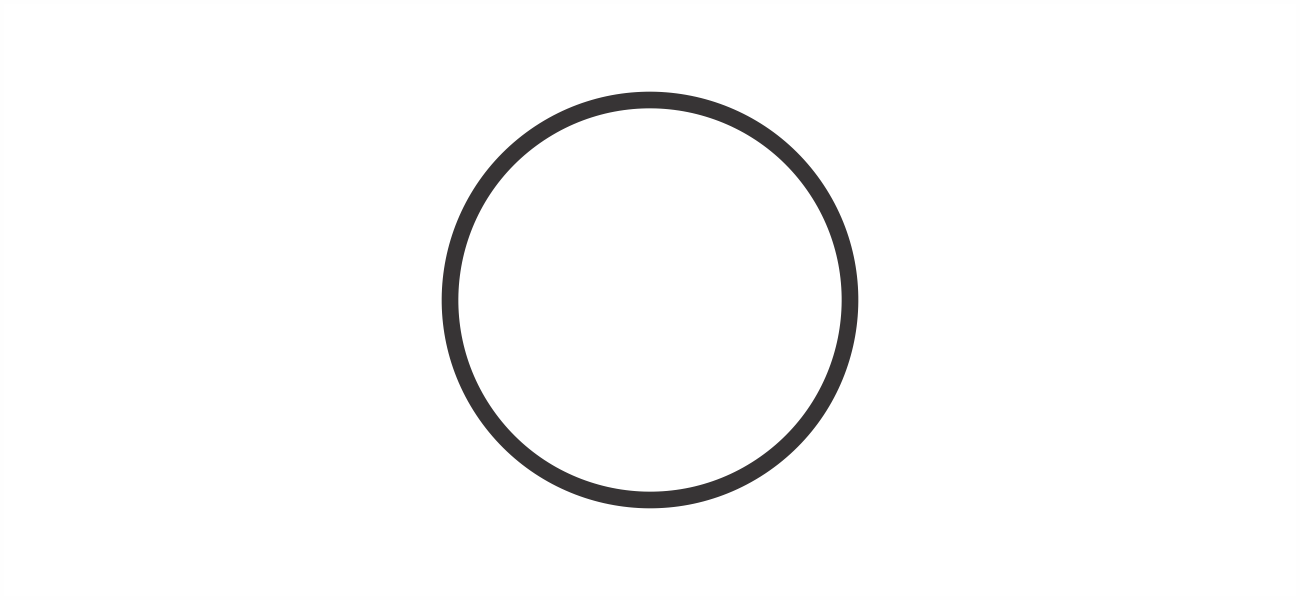

| Hotspot |
 |
|---|
3 Radio facilities
| Basic radionavigation aid symbol |
 |
|---|

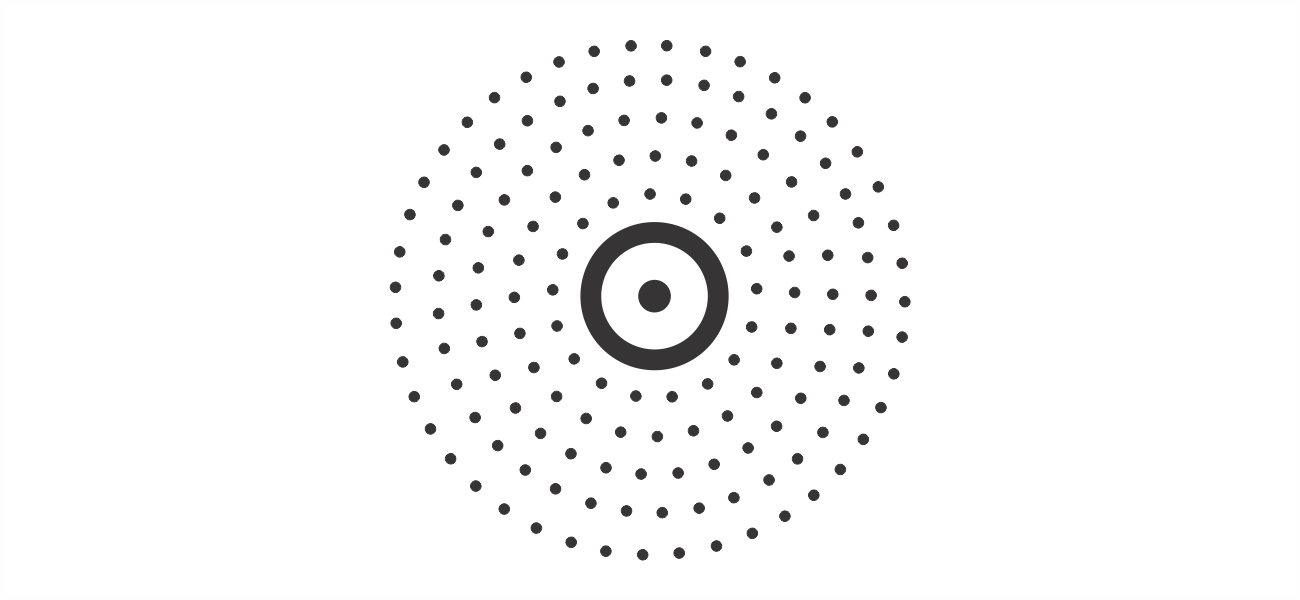

| Non-directional radio beacon (NDB) |
 |
|---|

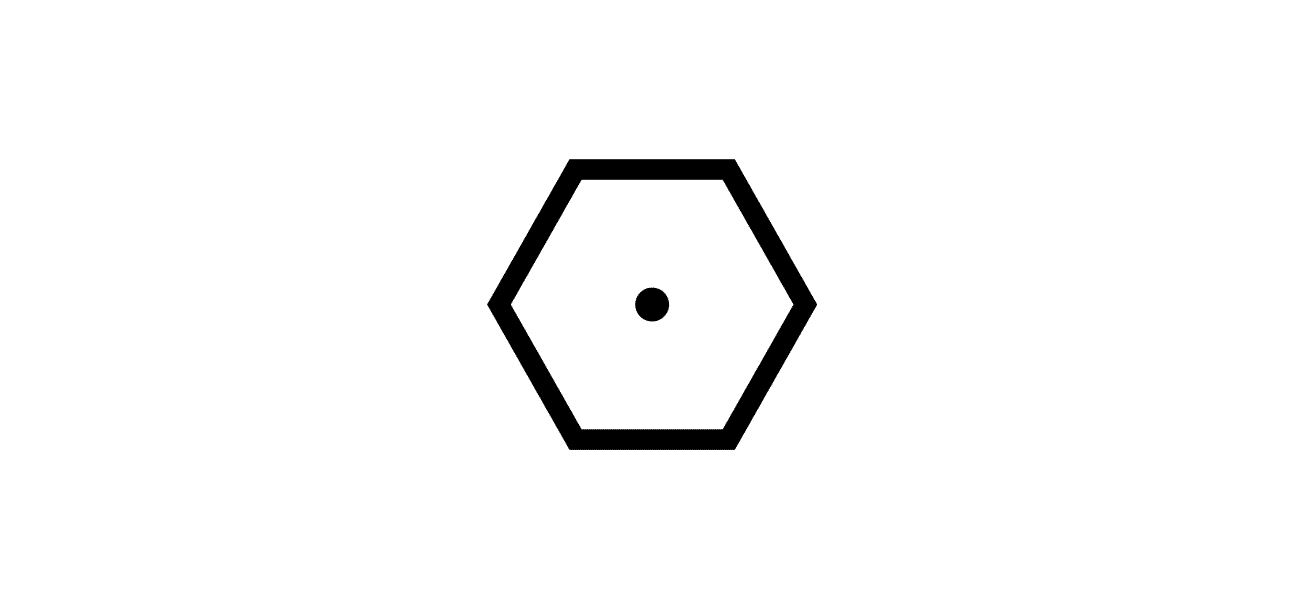

| VHF omnidirectional radio range (VOR) |
 |
|---|
| Distance Measuring Equipment (DME) |
 |
|---|

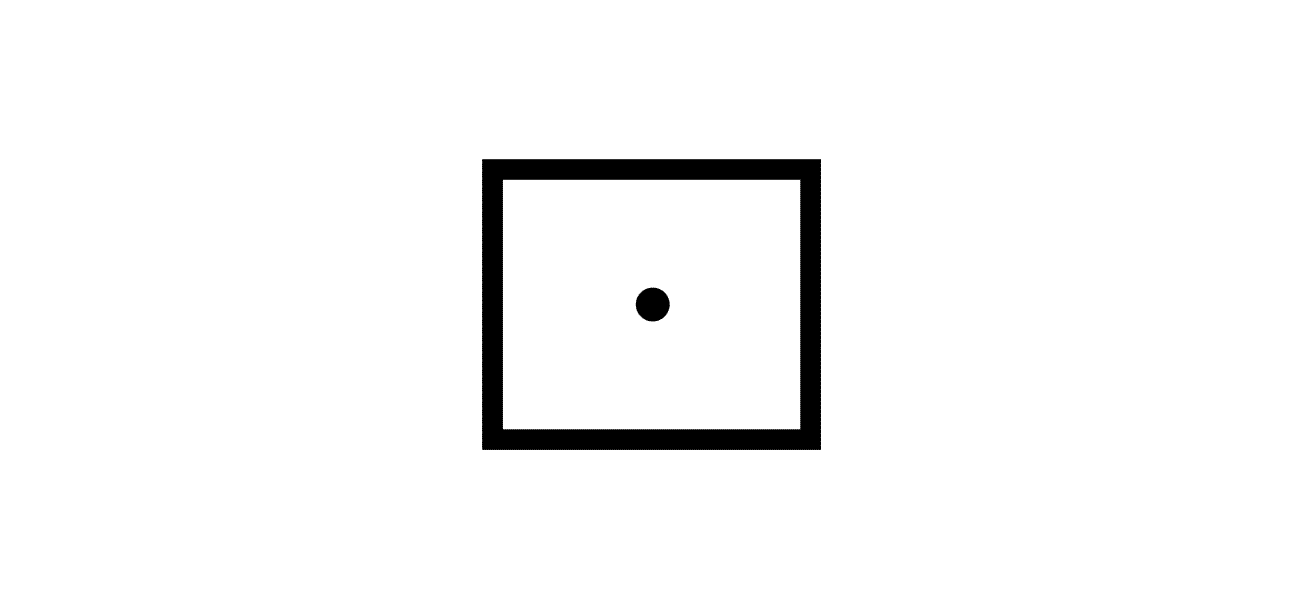

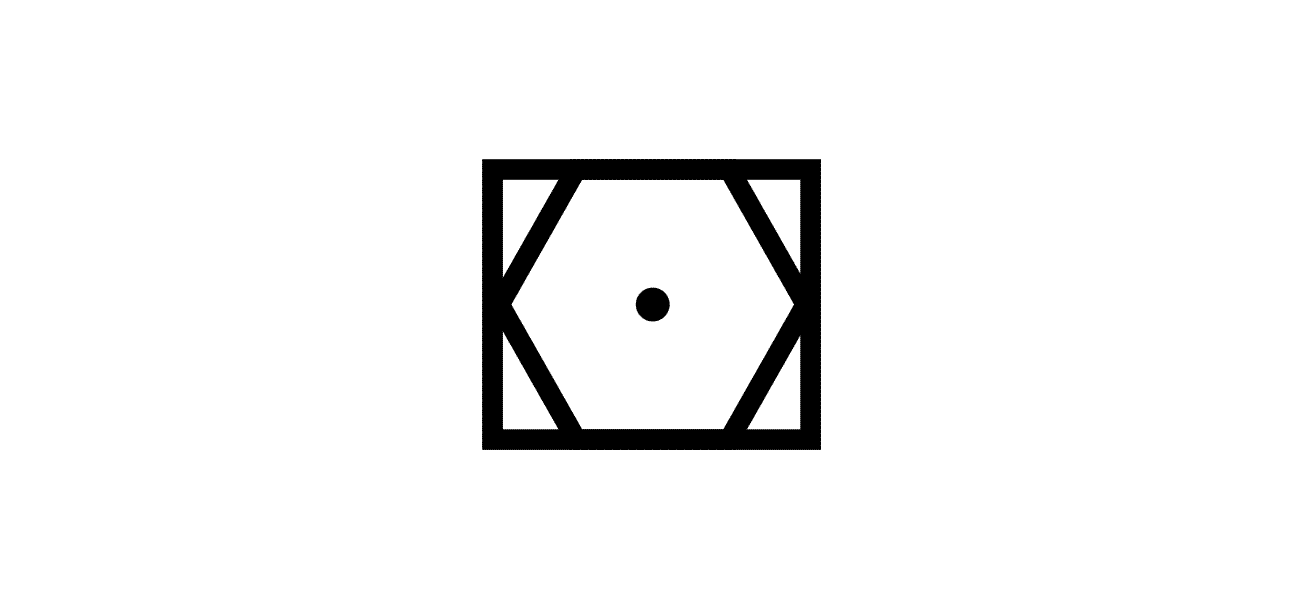

| Collocated VOR and DME facility |
 |
|---|

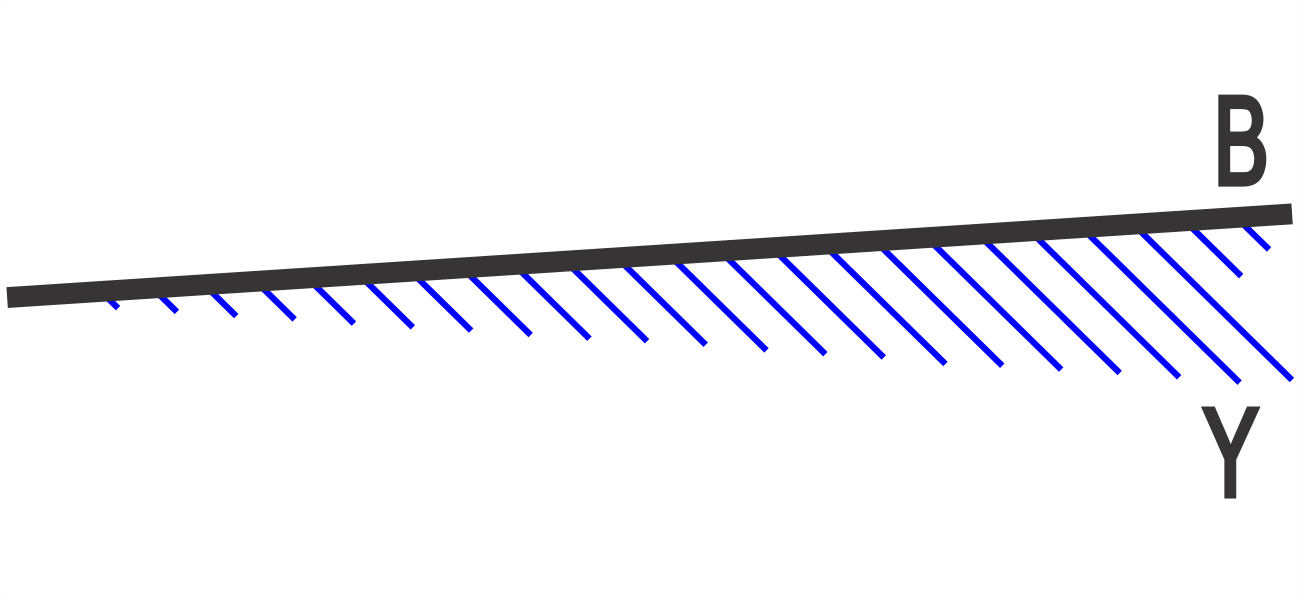

| Instrument Landing System (ILS) |
 |
|---|

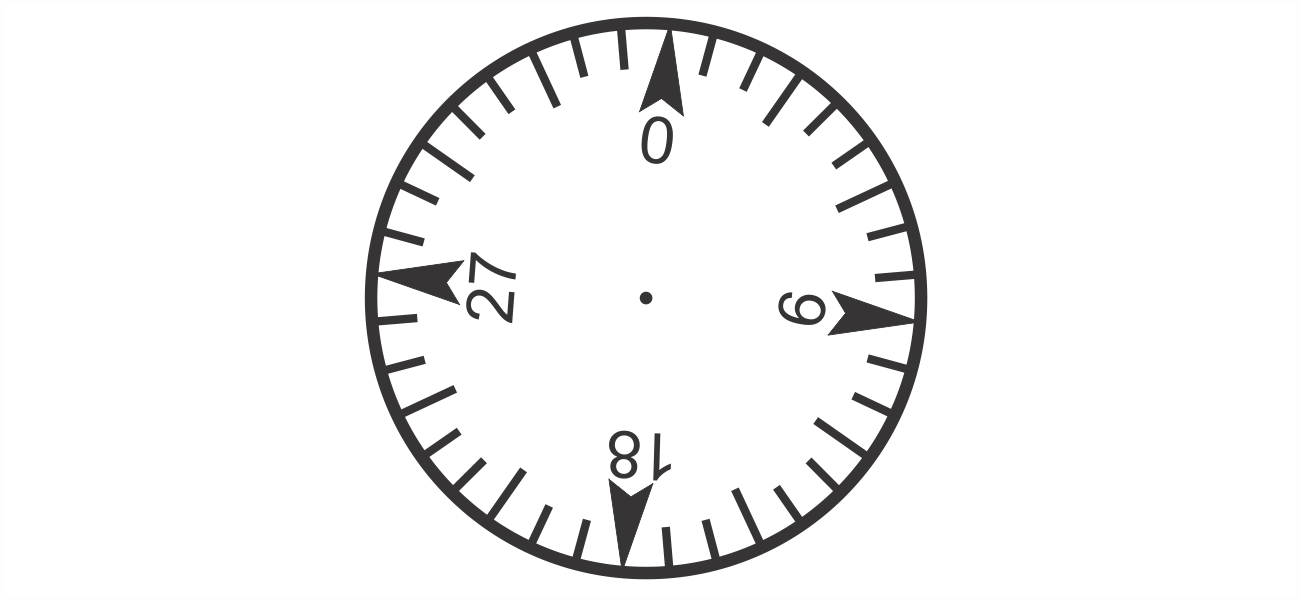

| Compass rose |
 |
|---|

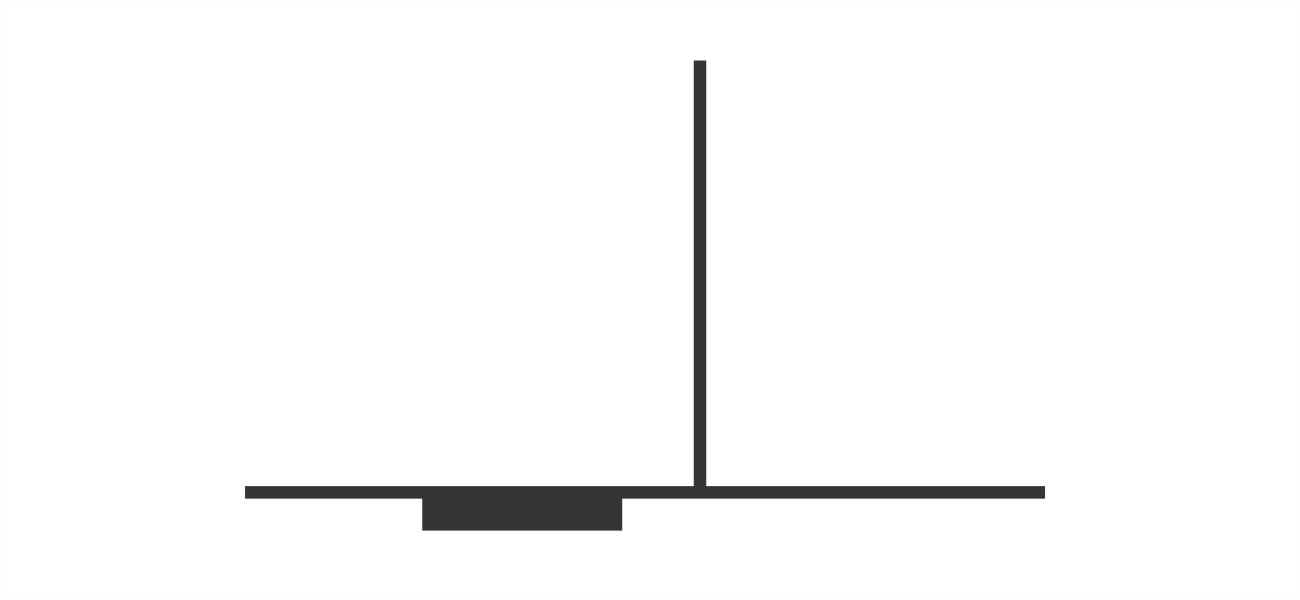

| Profiles for radio navigation aids |
 |
|---|

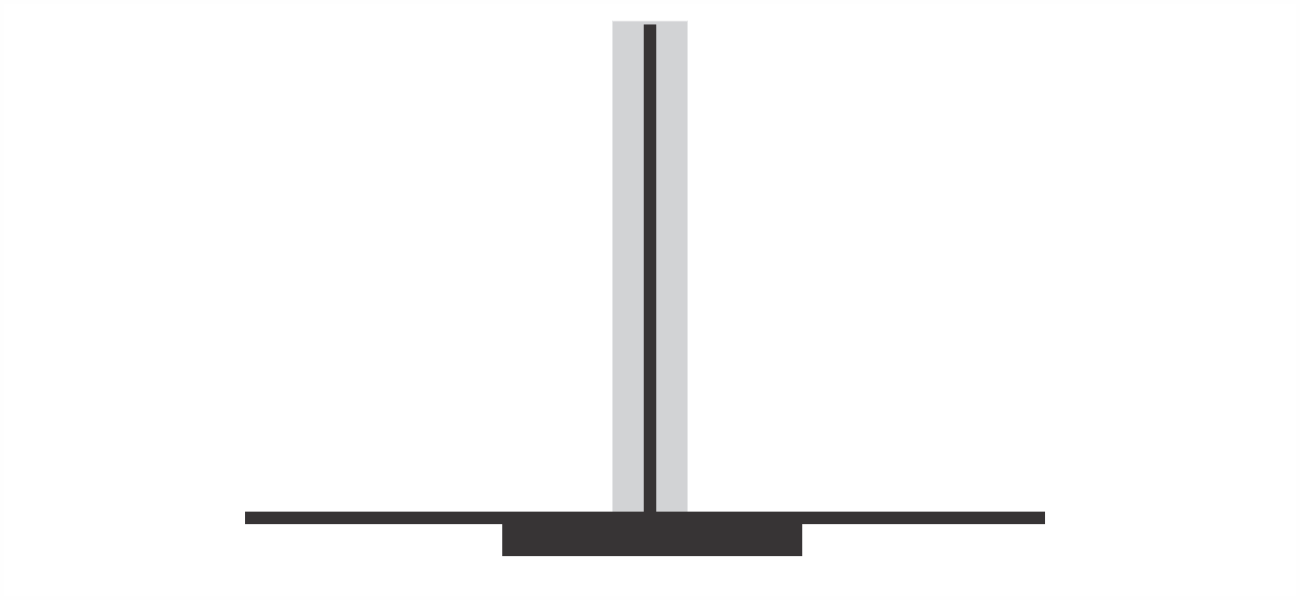

| Profiles for collocated VOR/DME |
 |
|---|

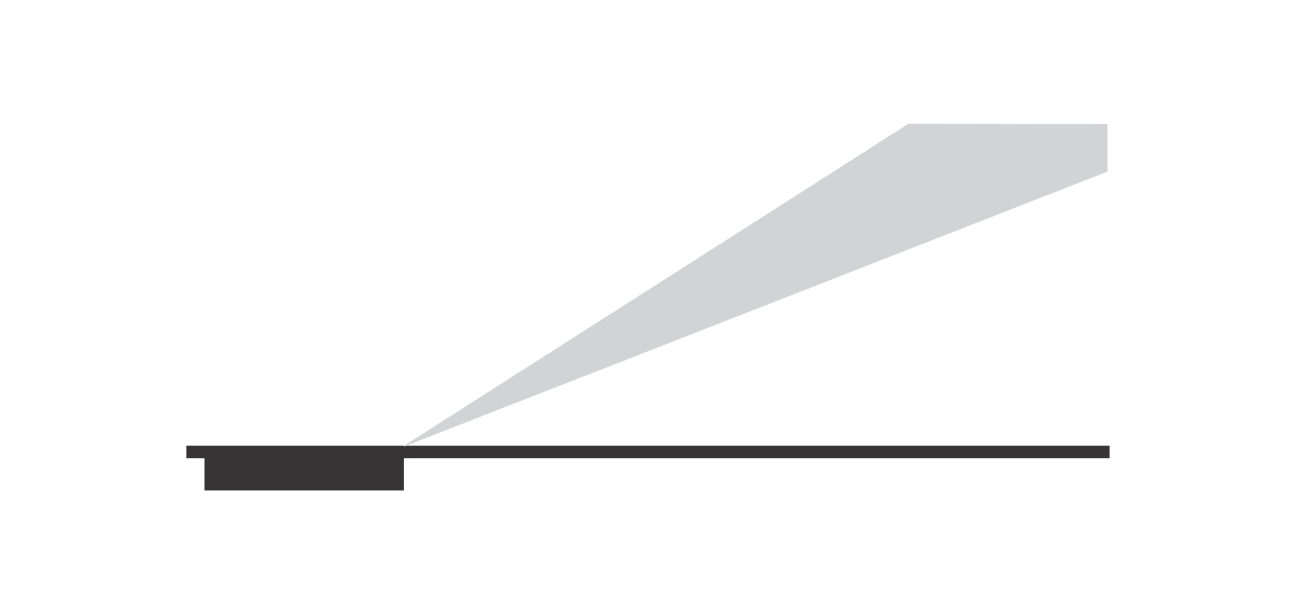

| Profiles for ILS |
 |
|---|
4 Obstacles

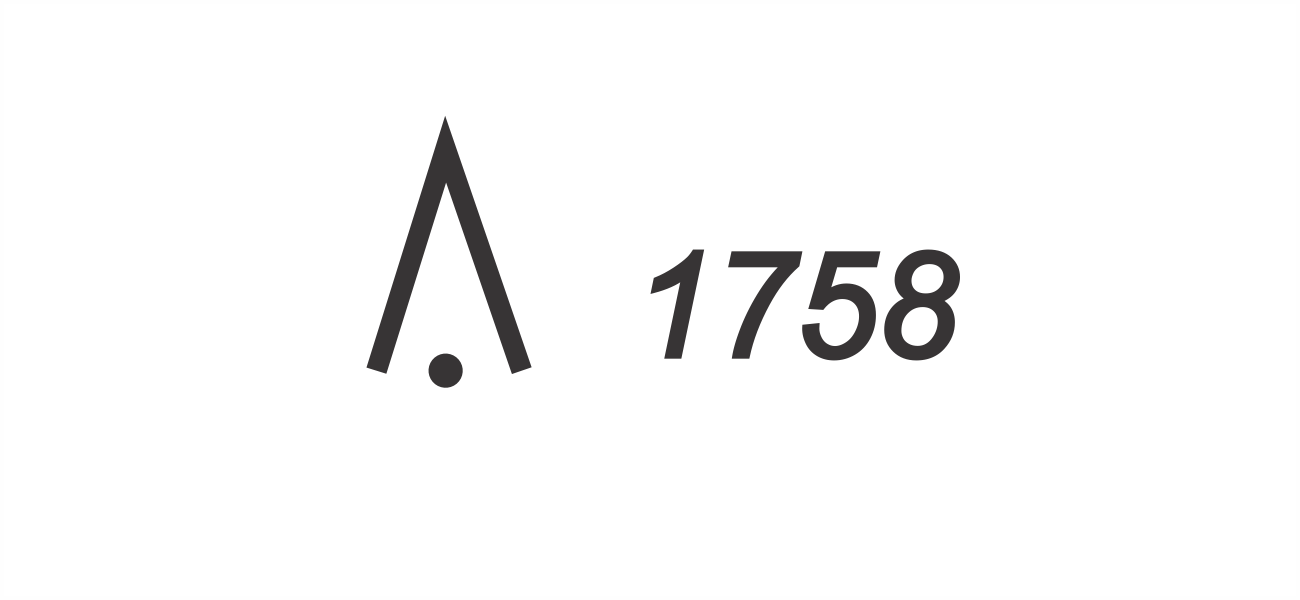

| Obstacles (not lighted) |
 |
|---|

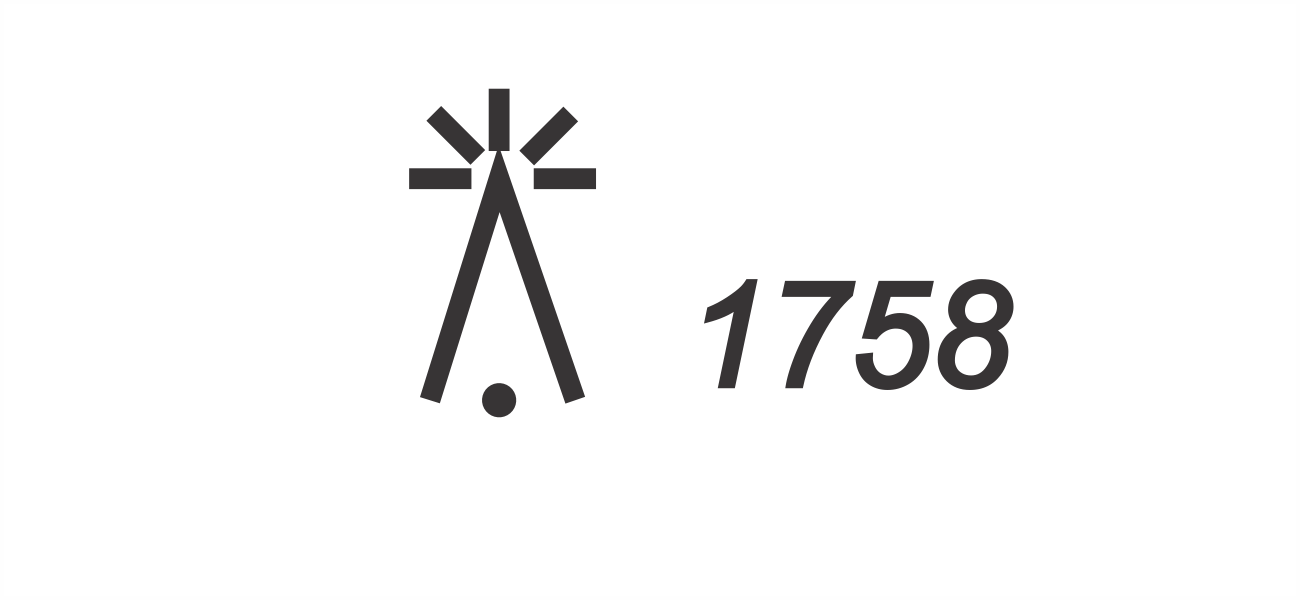

| Lighted obstacles |
 |

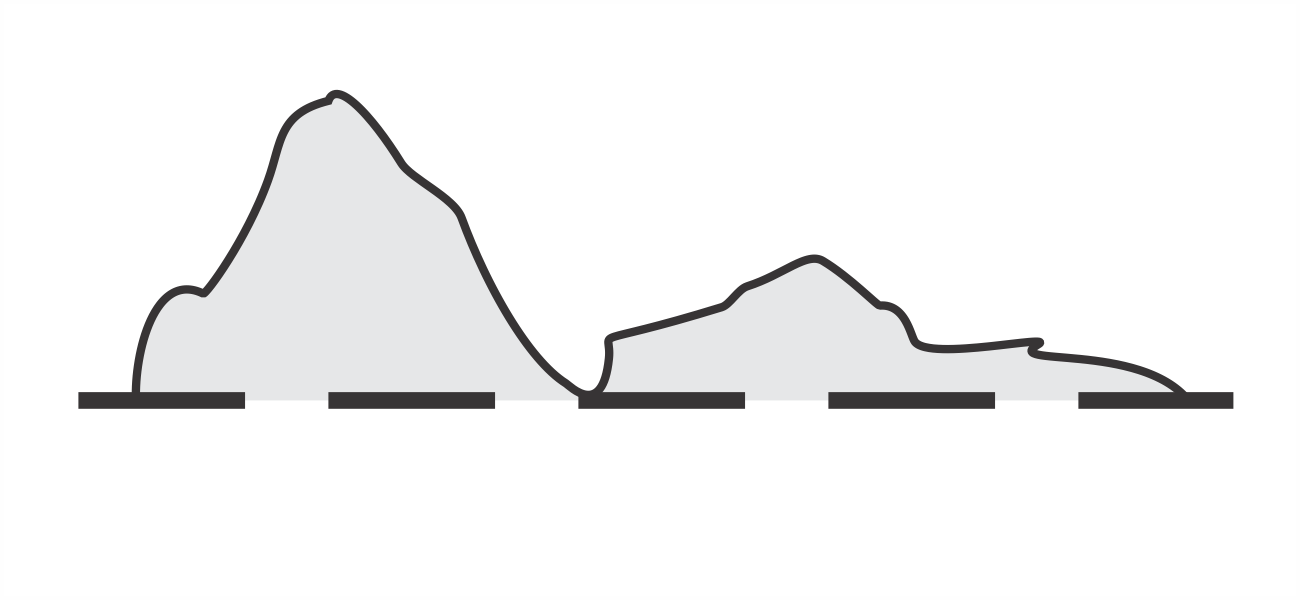

|---|
| Terrain penetrating obstacle plane profile |
 |

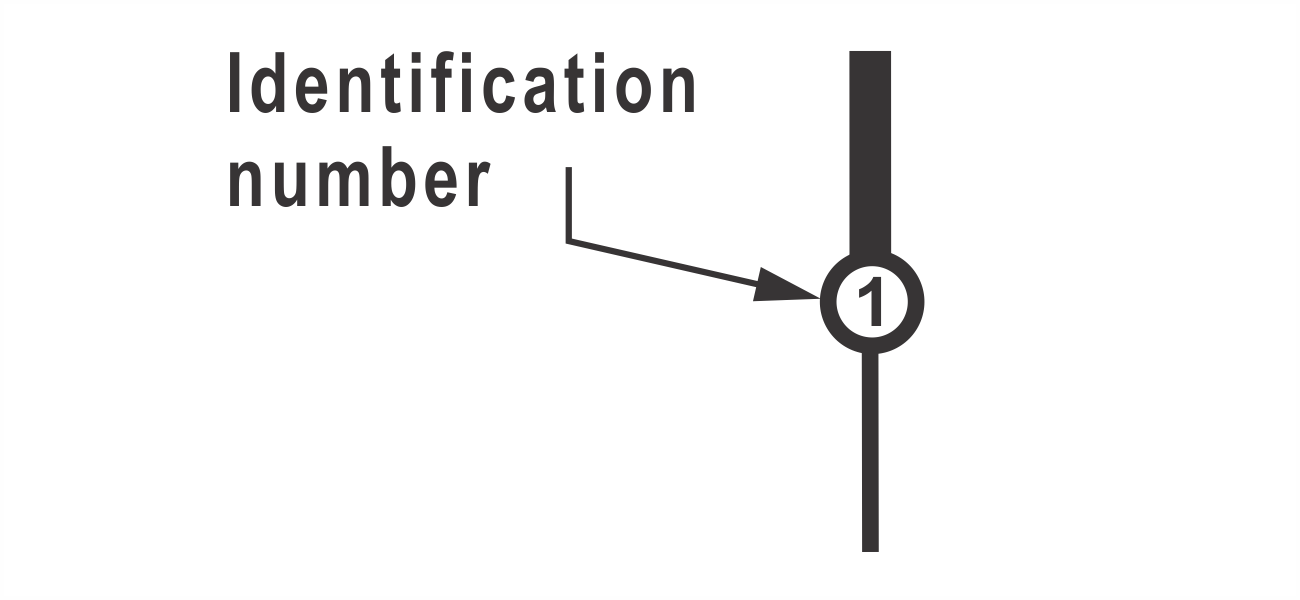

|---|
| Profiles for aerodrome obstacle |
 |
|---|
5 Air traffic services

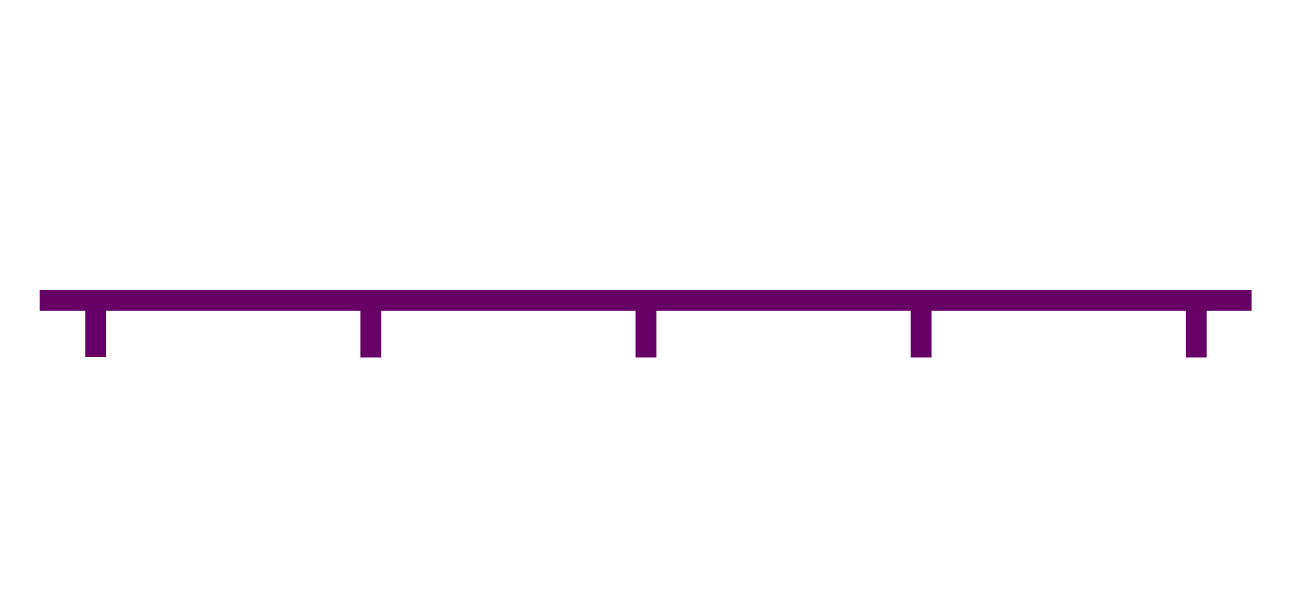

| Flight Information Region (FIR) |
 |
|---|

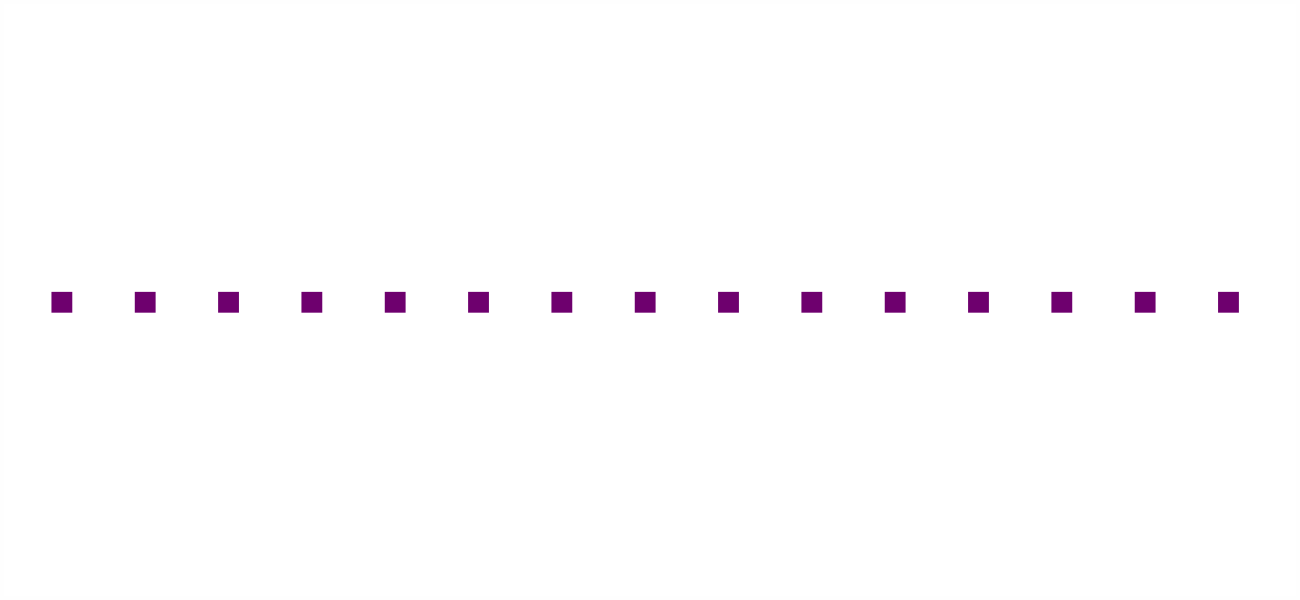

| Aerodrome Traffic Zone (ATZ) |
 |
|---|

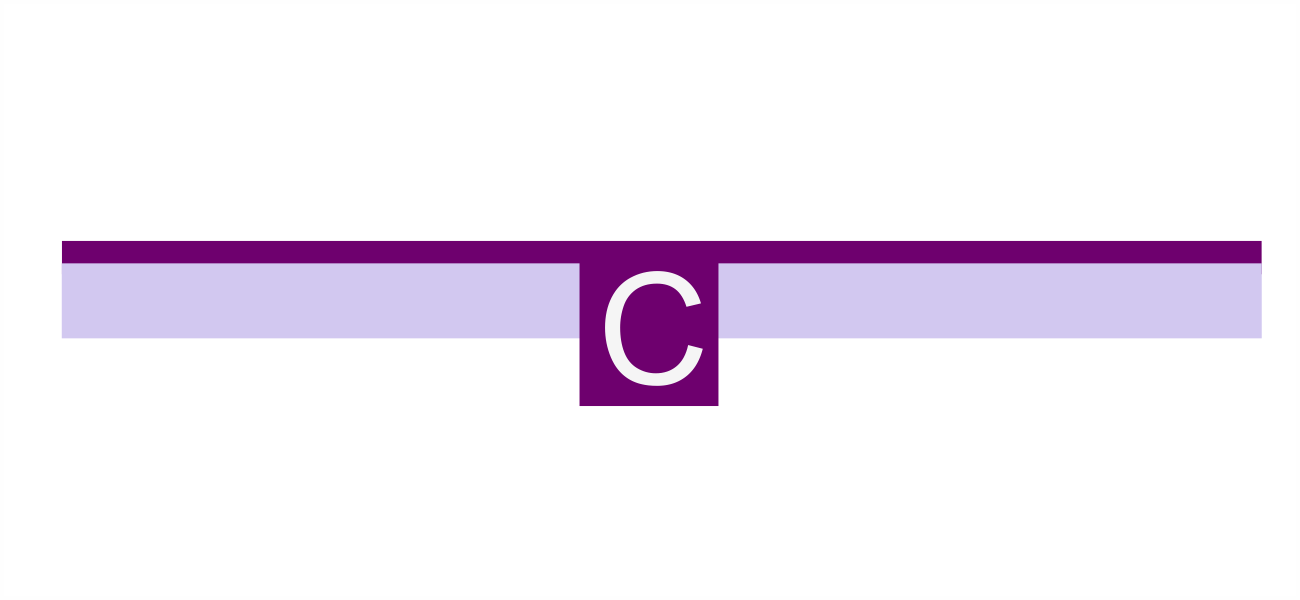

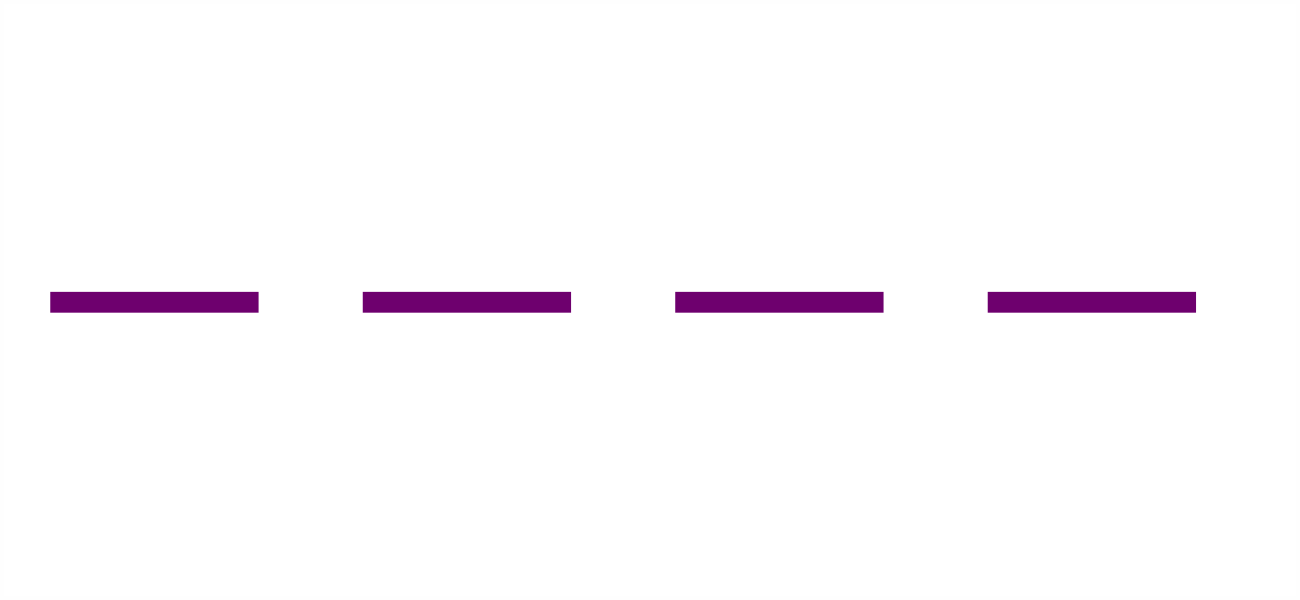

| Control zone (CTR) |
 |
|---|
| Terminal Control Area (TMA) |
 |
|---|

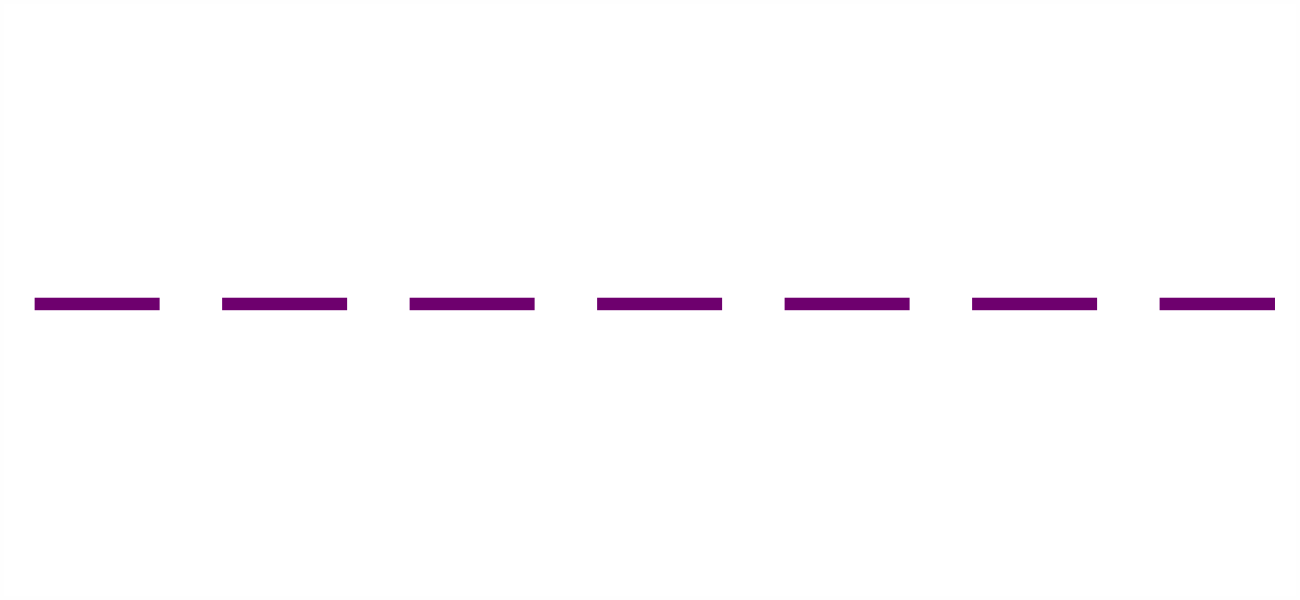

| TMA sector |
 |

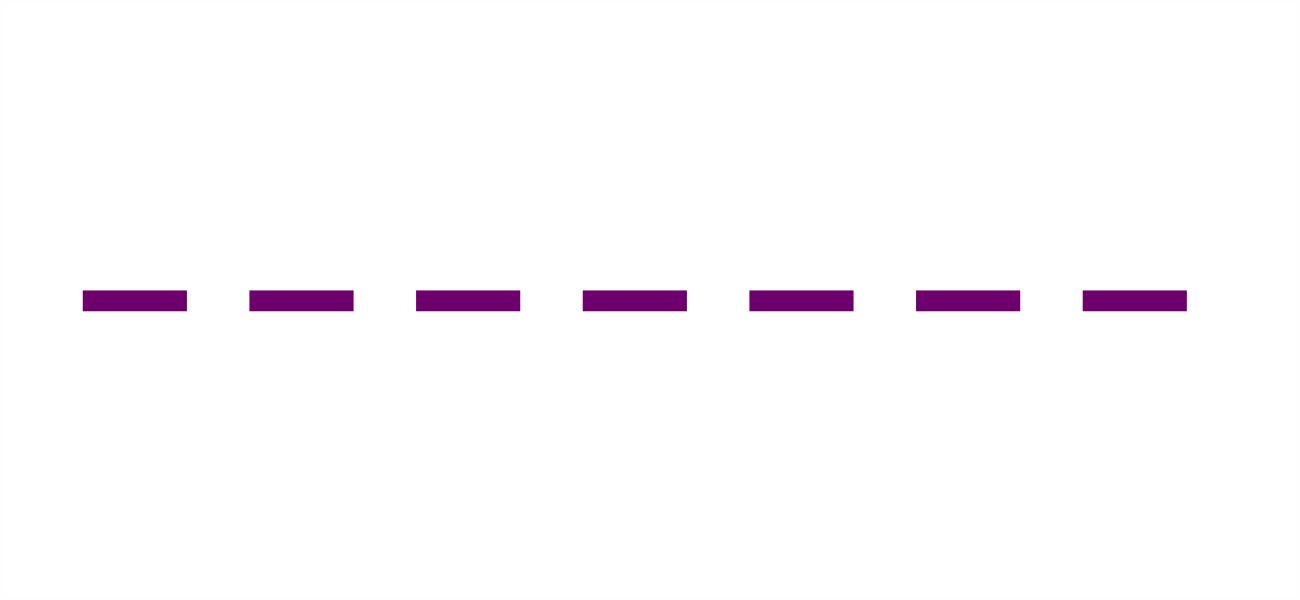

|---|
| Communication sector boundary (CTA) |
 |

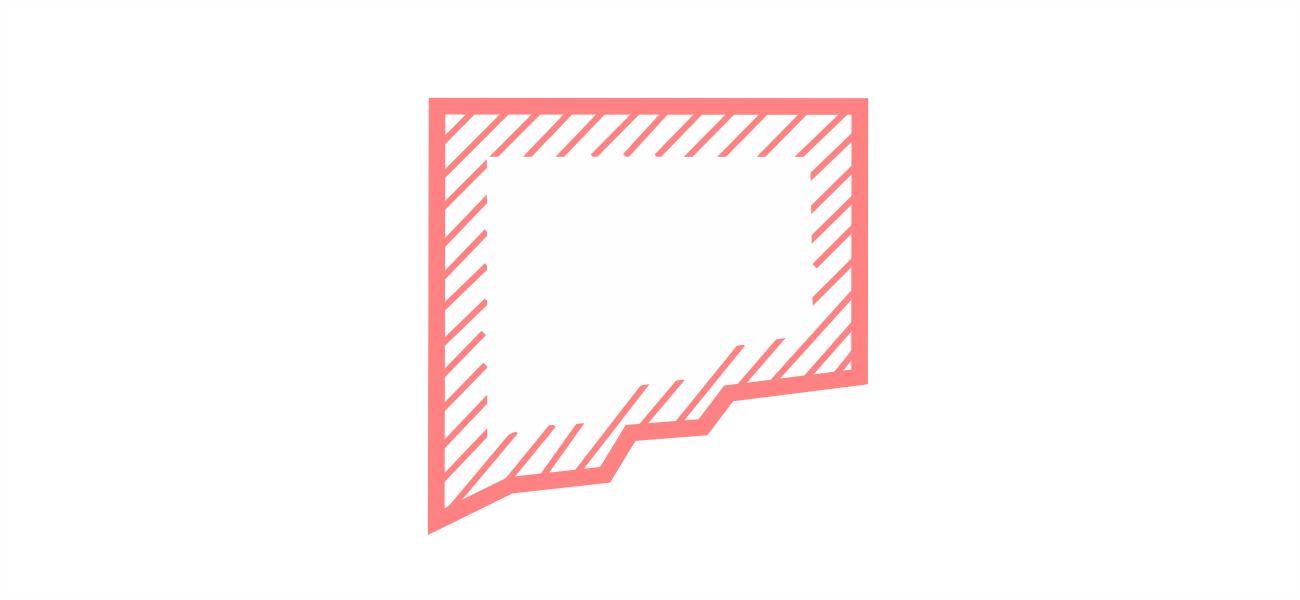

|---|
| Restricted airspace (prohibited, restricted areas) |
 |

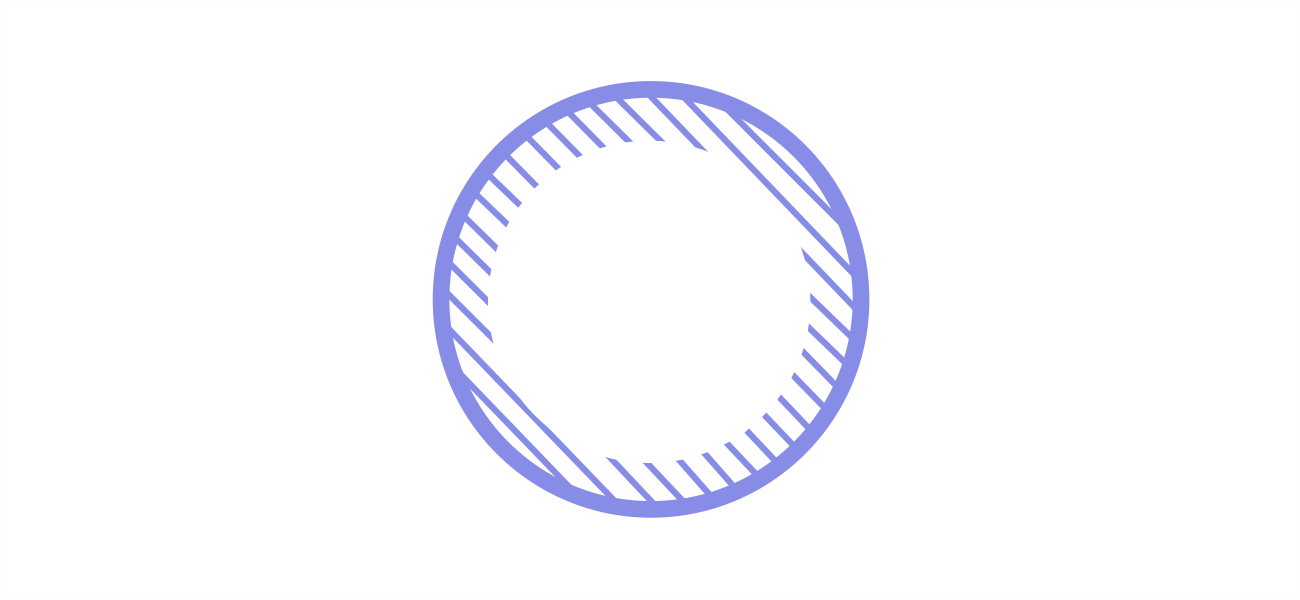

|---|
| Restricted airspace (military exercise and training areas) |
 |
|---|

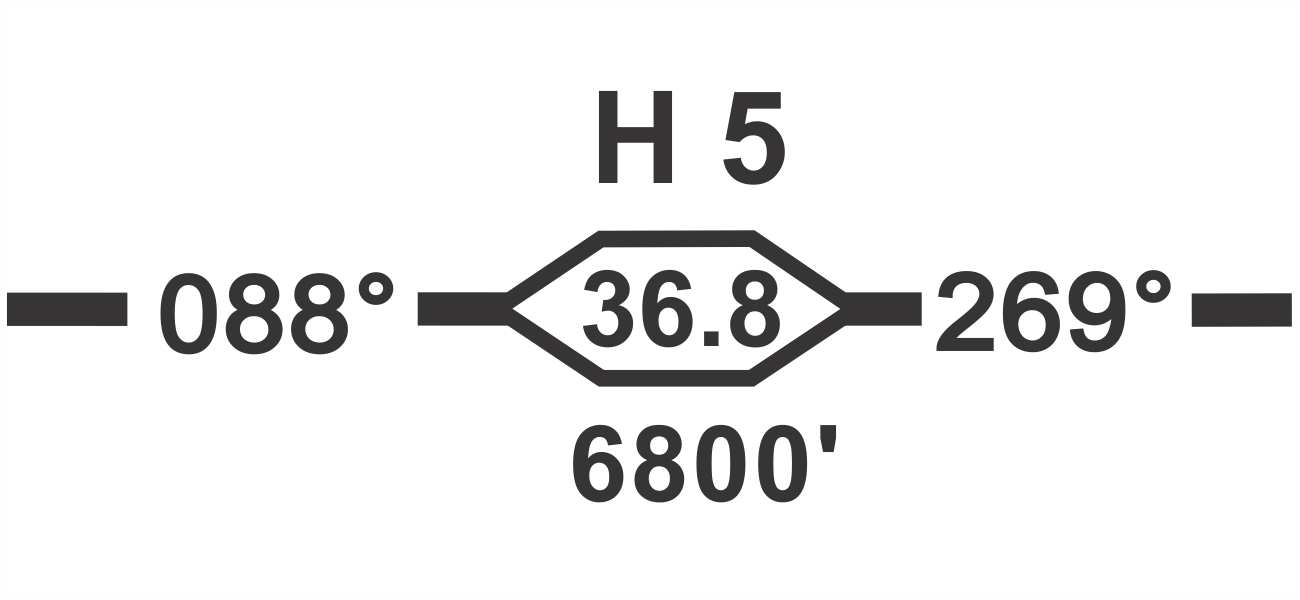

| ATS route (conventional) - designator, magnetic track, distance, minimum cruising level |
 |
|---|

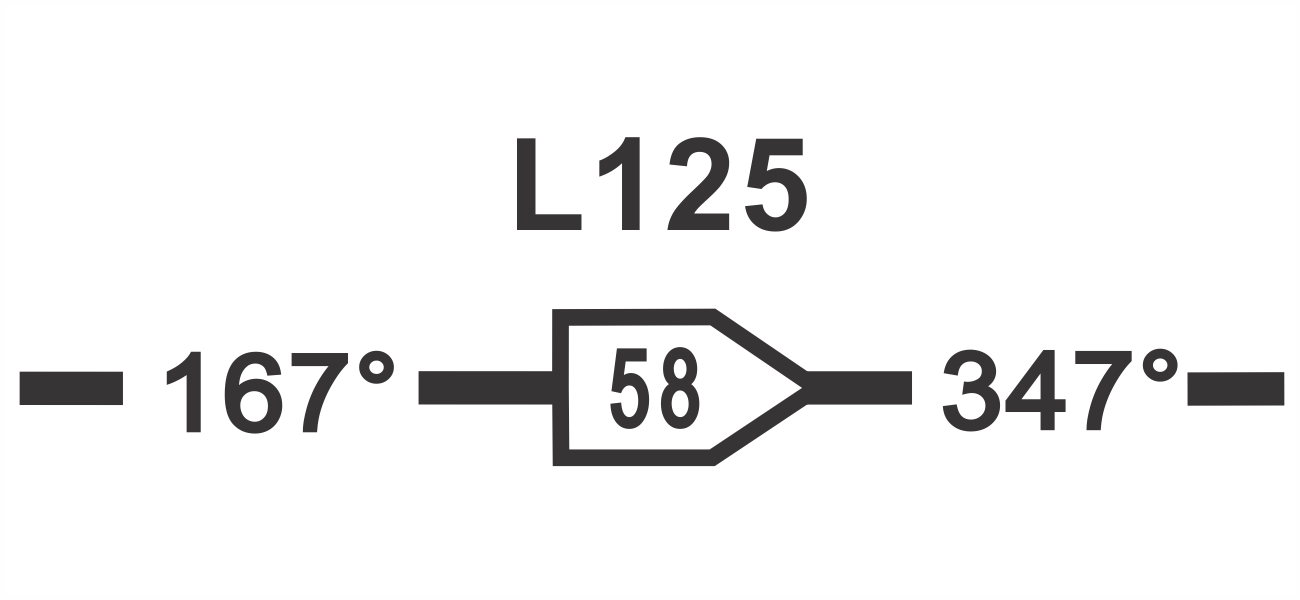

| ATS route (RNAV) - designator, magnetic track, distance |
 |
|---|

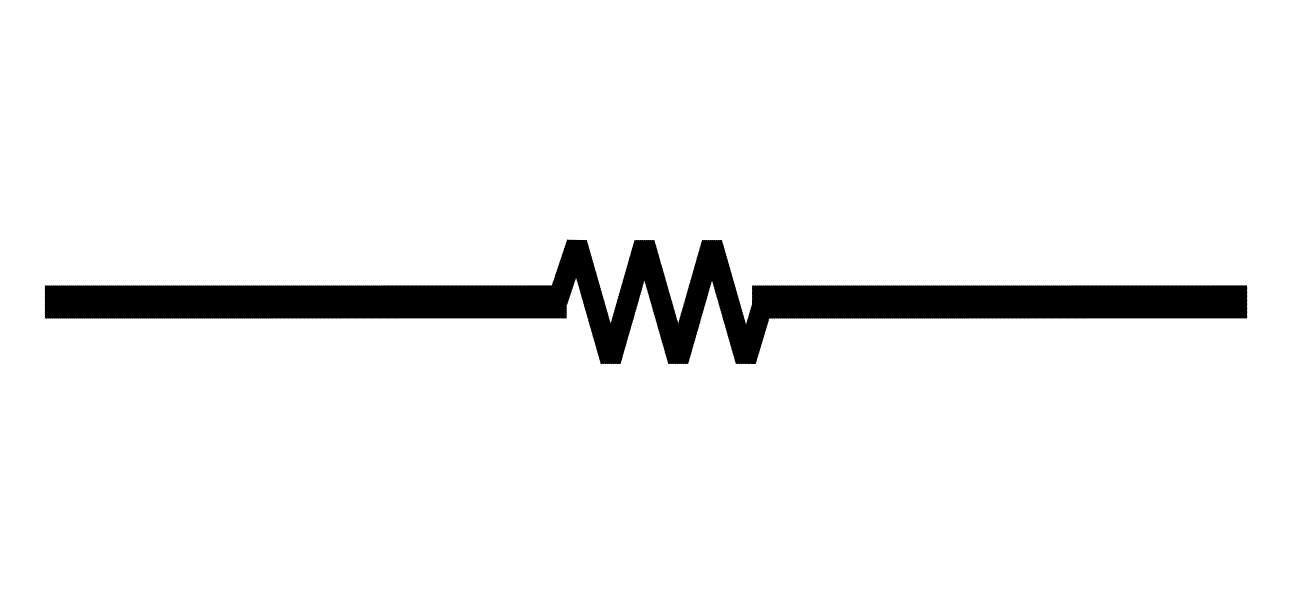

| Scale break (on ATS route) |
 |
|---|

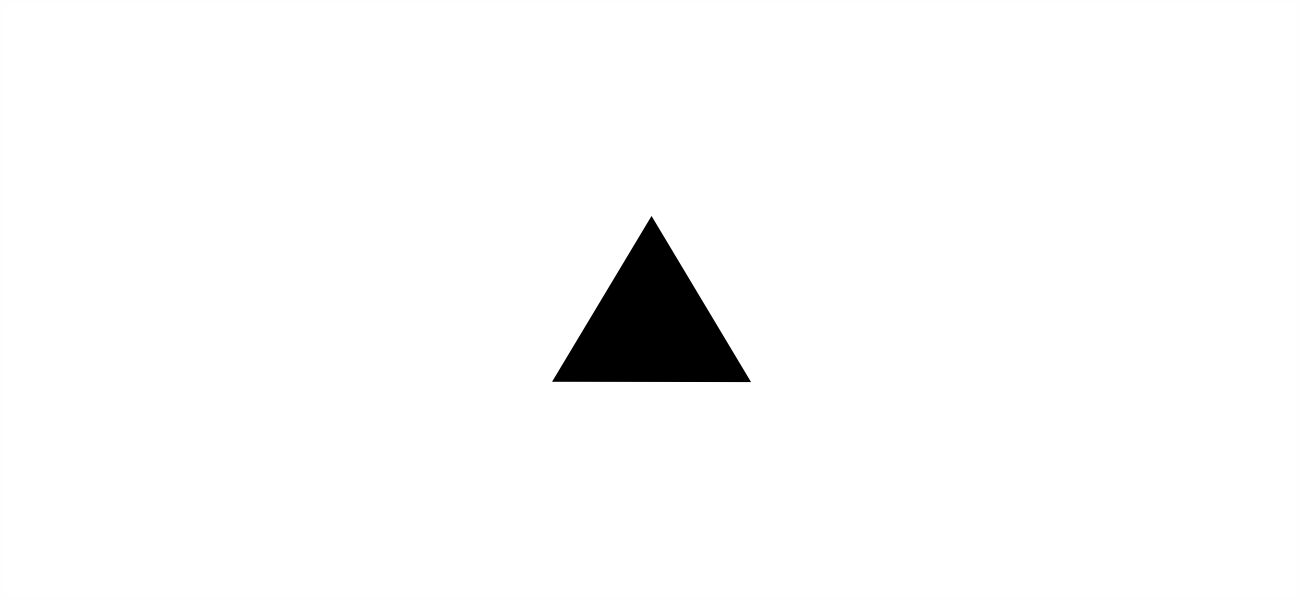

| Compulsory reporting point |
 |

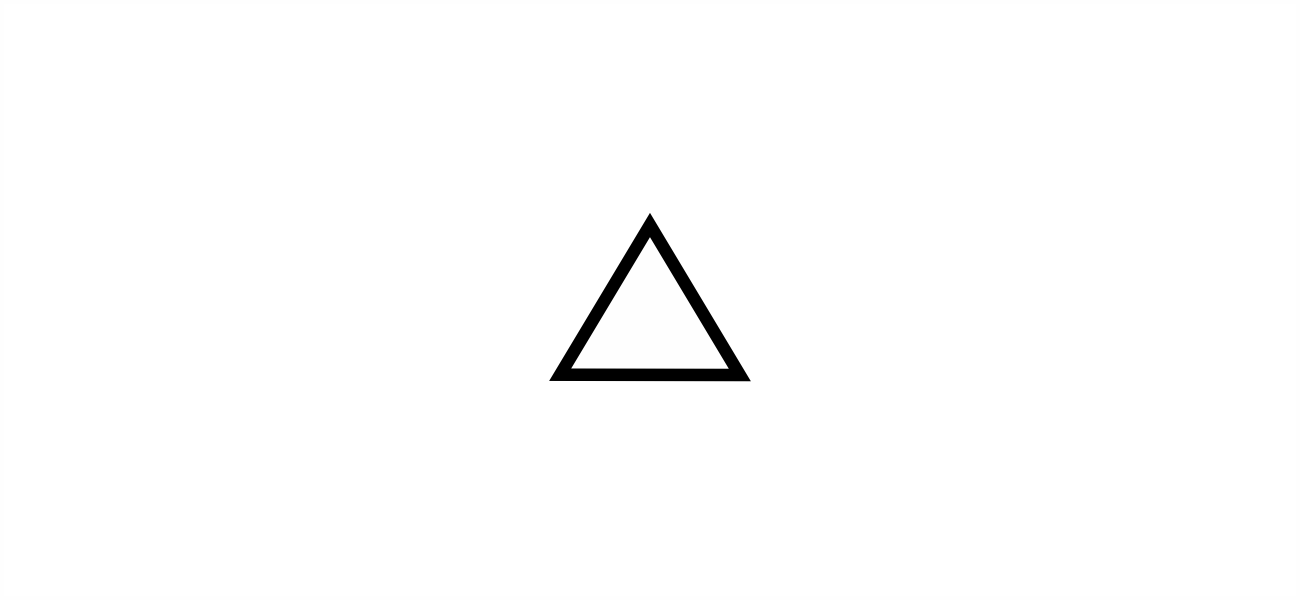

|---|
| Non - compulsory reporting point |
 |

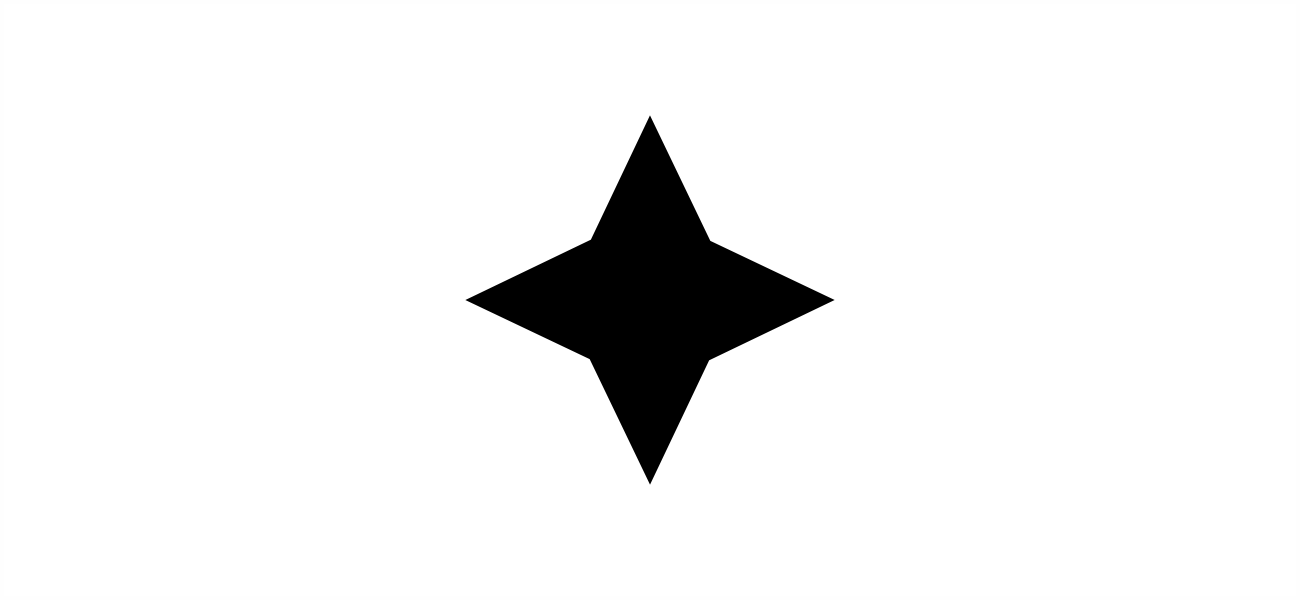

|---|
| Waypoint compulsory fly-by |
 |
|---|

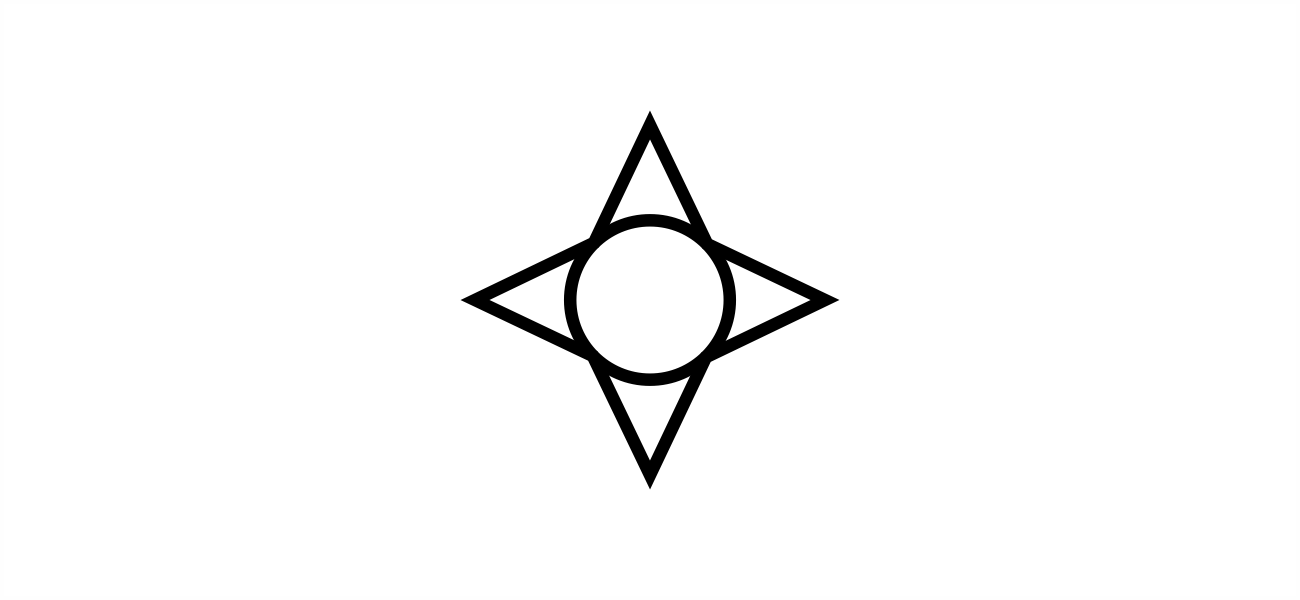

| Waypoint on request fly-by |
 |
|---|

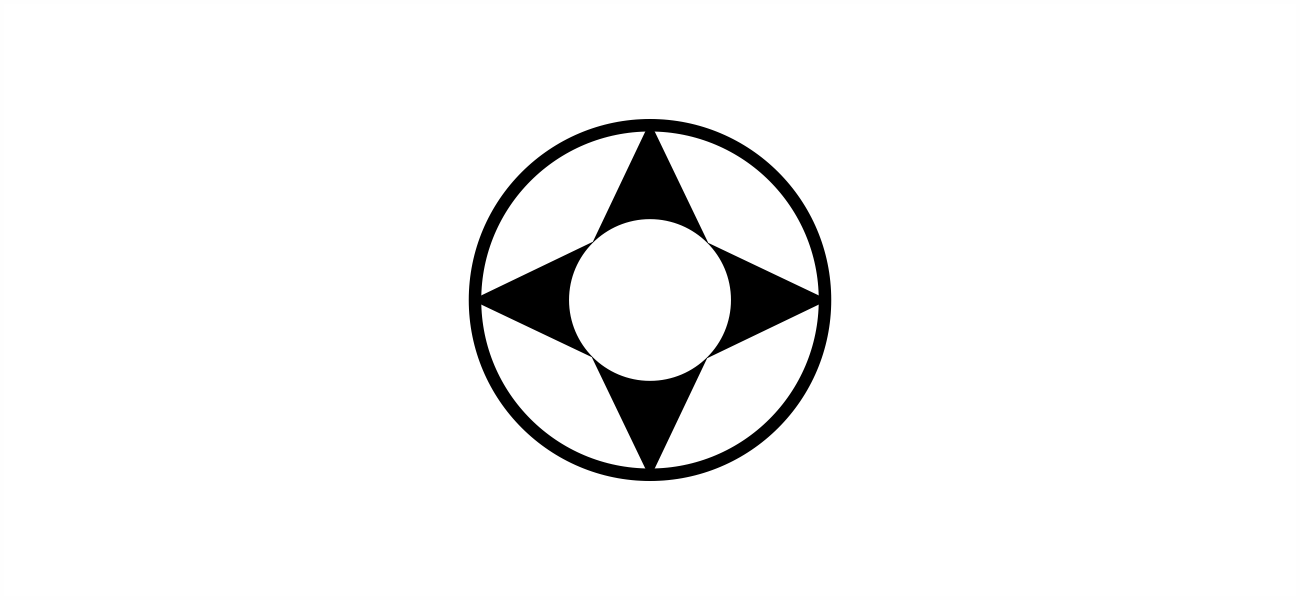

| Waypoint on request flyover |
 |
|---|

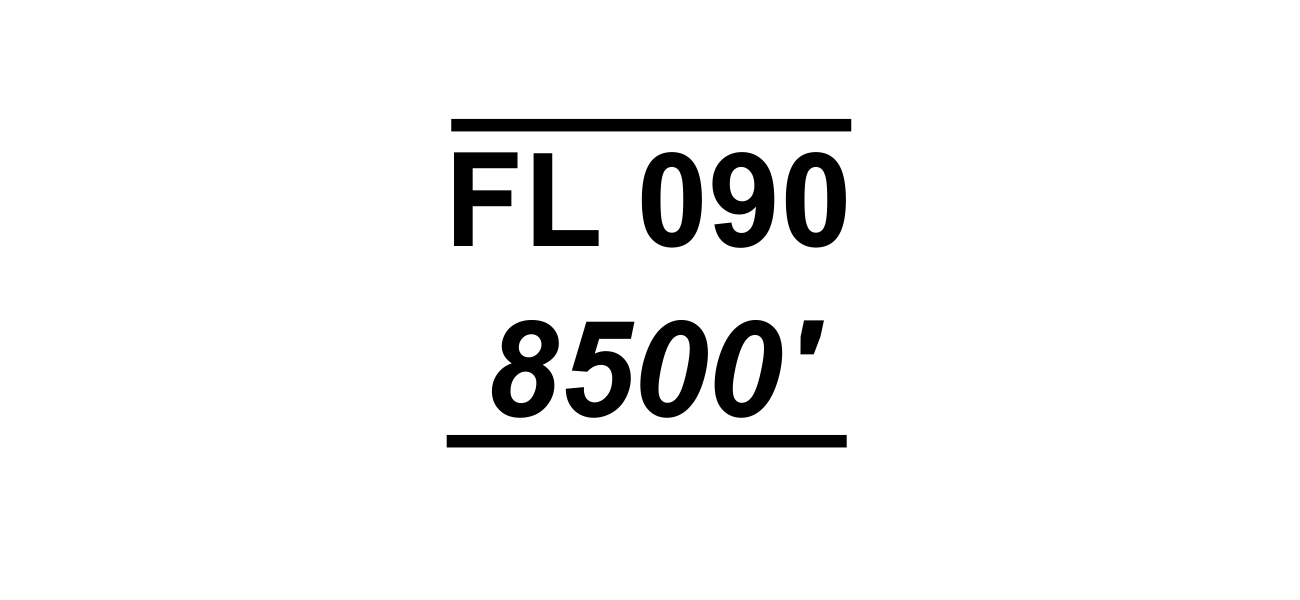

| Procedure altitudes/ flight levels | "window" |
 |

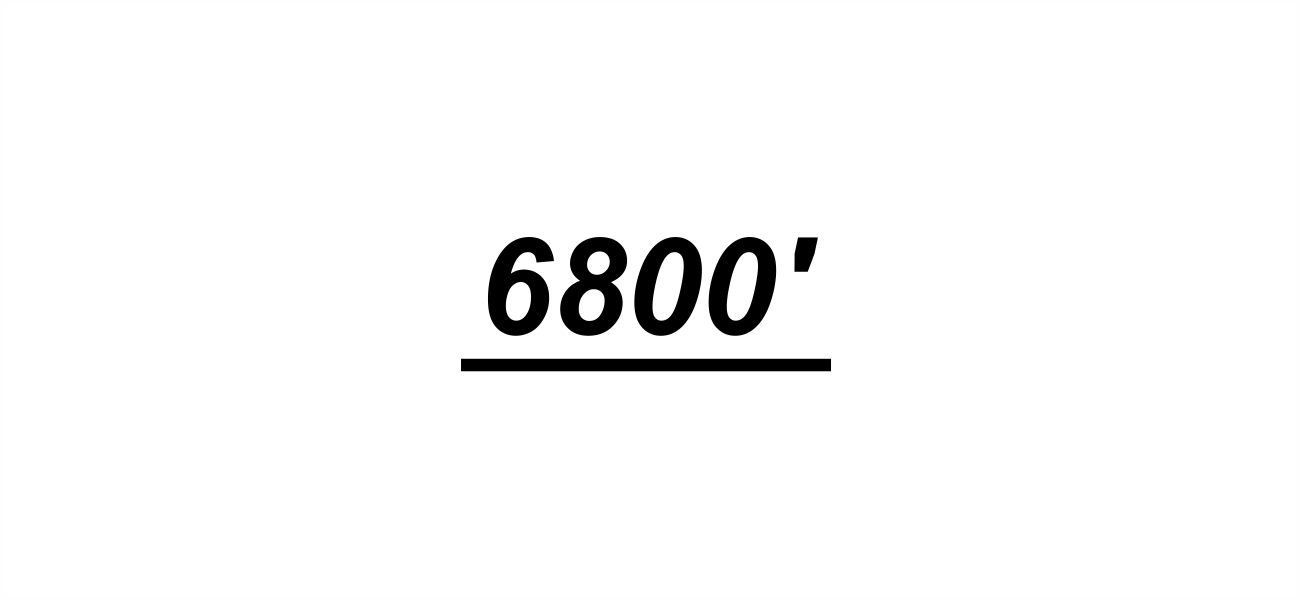

|---|
| "at or above" |
 |

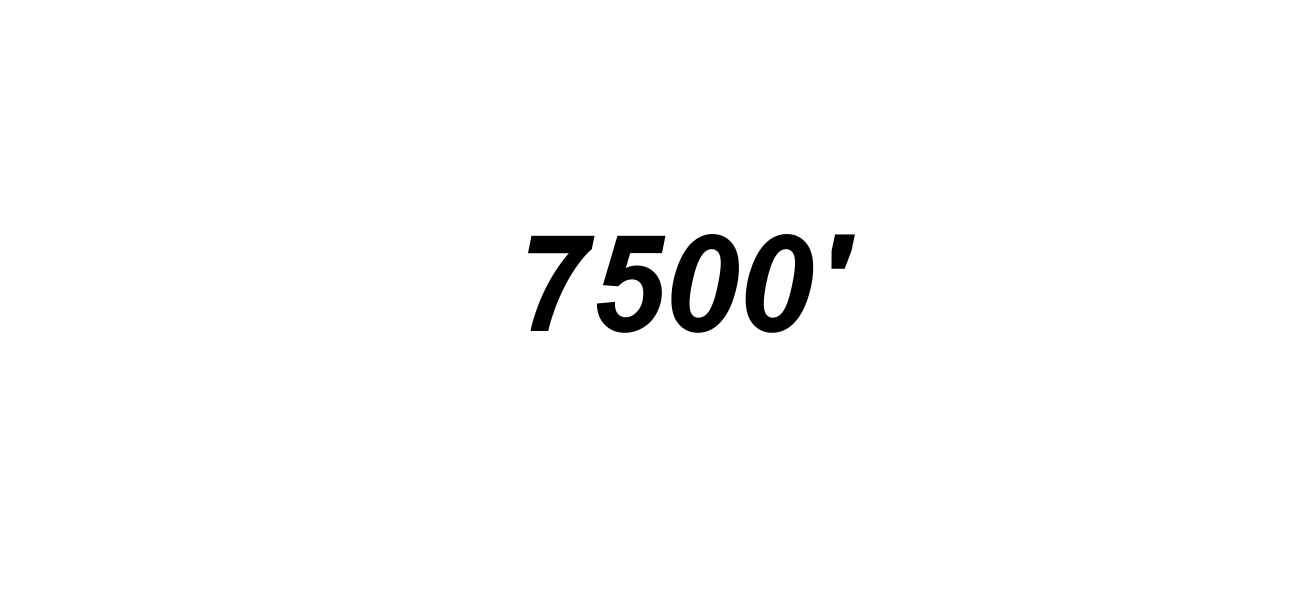

|---|
| "recommended" |
 |
|---|

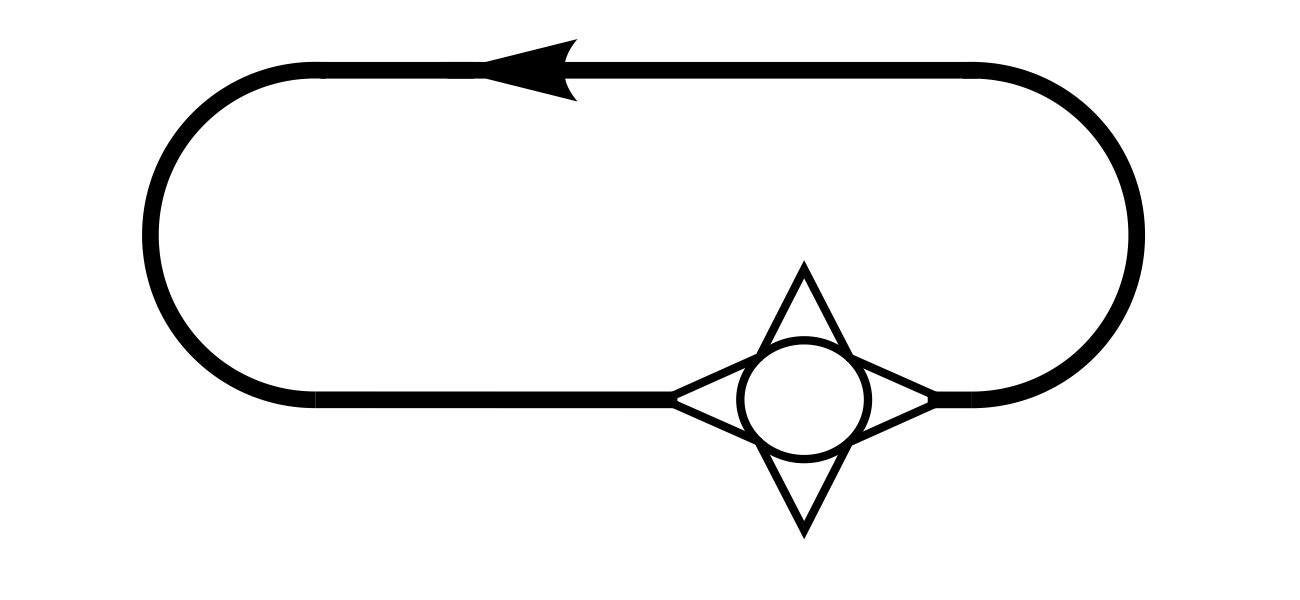

| Holding pattern |
 |
|---|

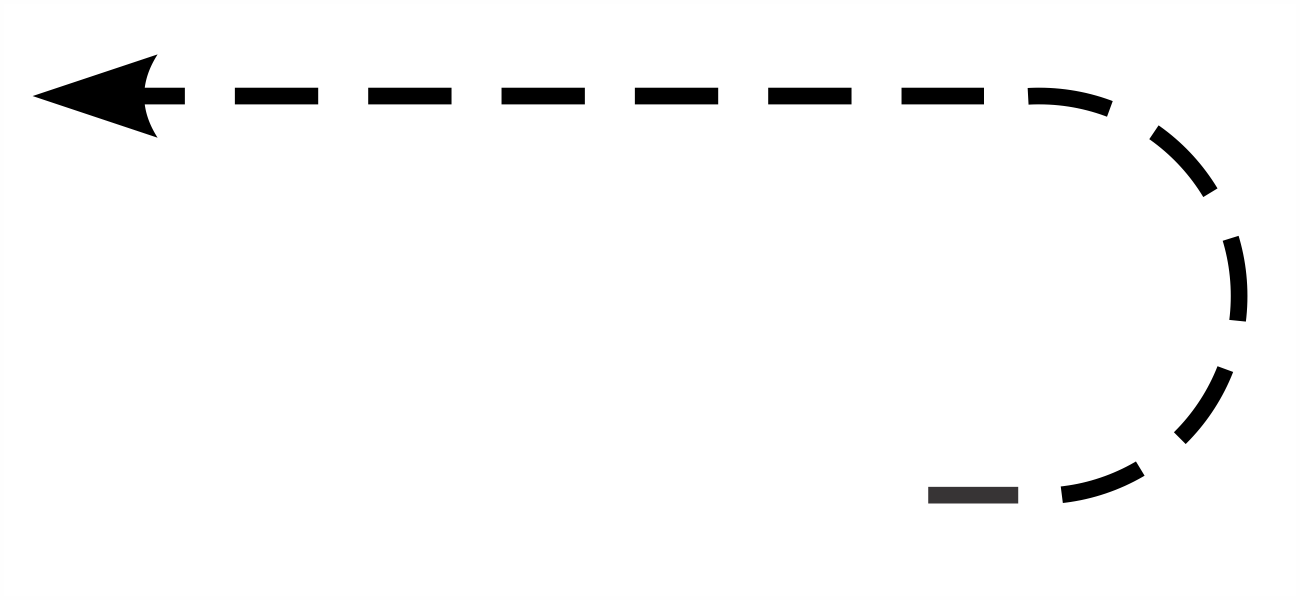

| Missed approach track |
 |
|---|
6 Topography

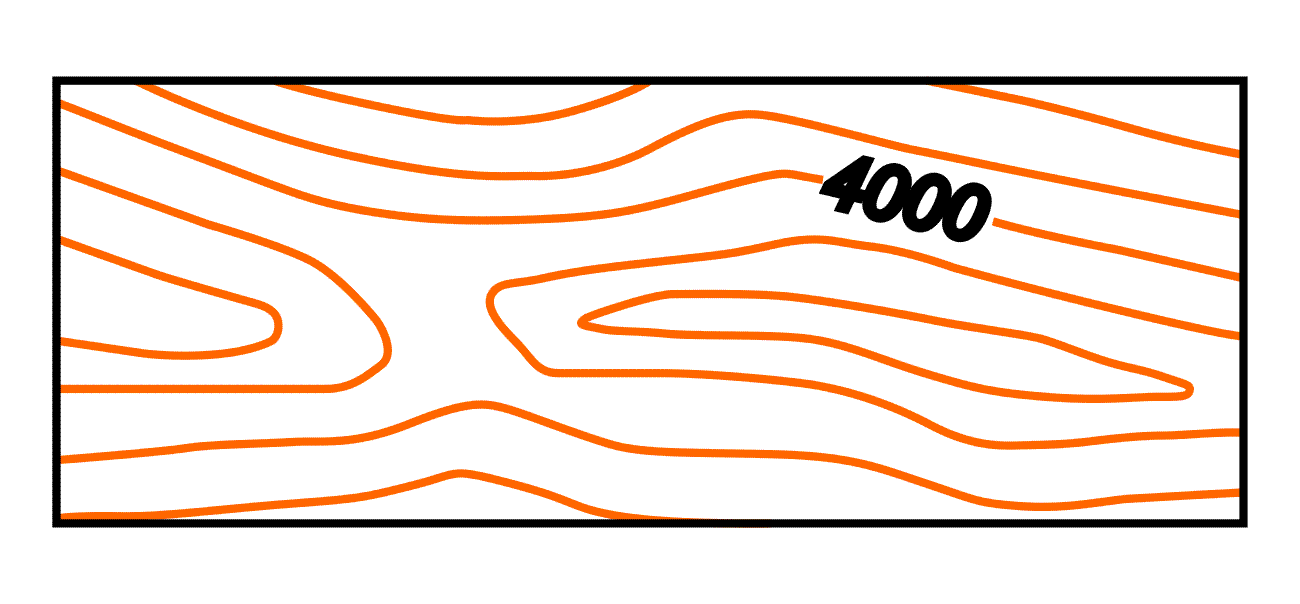

| Contours |
 |
|---|

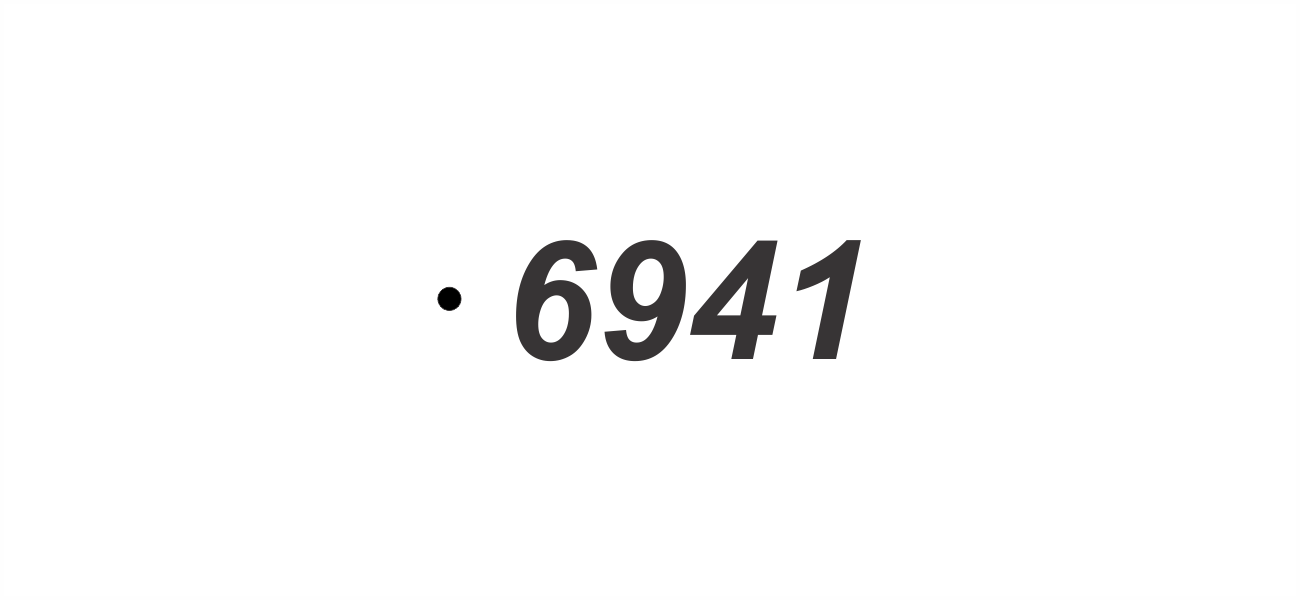

| Spot elevation |
 |

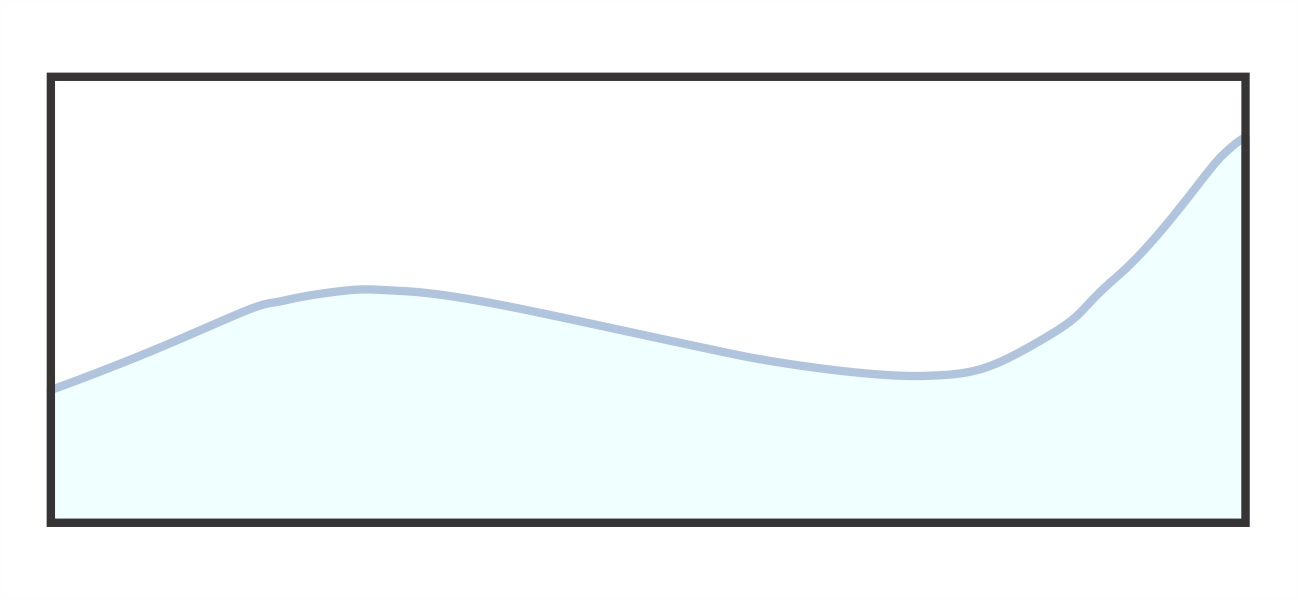

|---|
| Shore line (reliable) |
 |

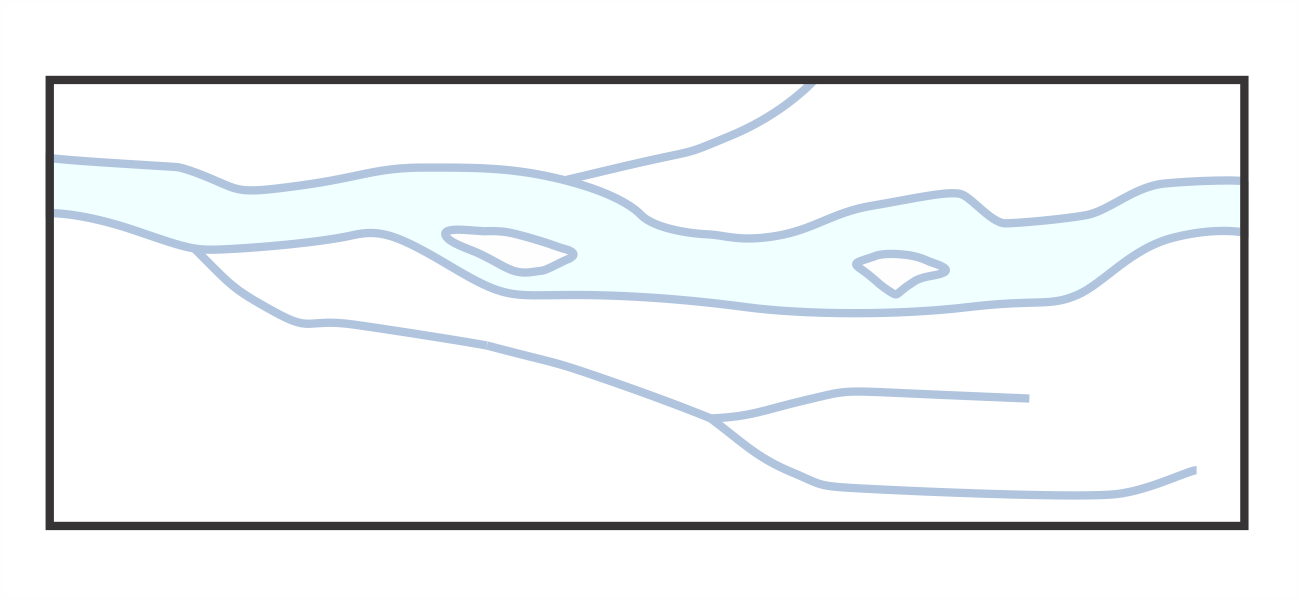

|---|
| River |
 |
|---|

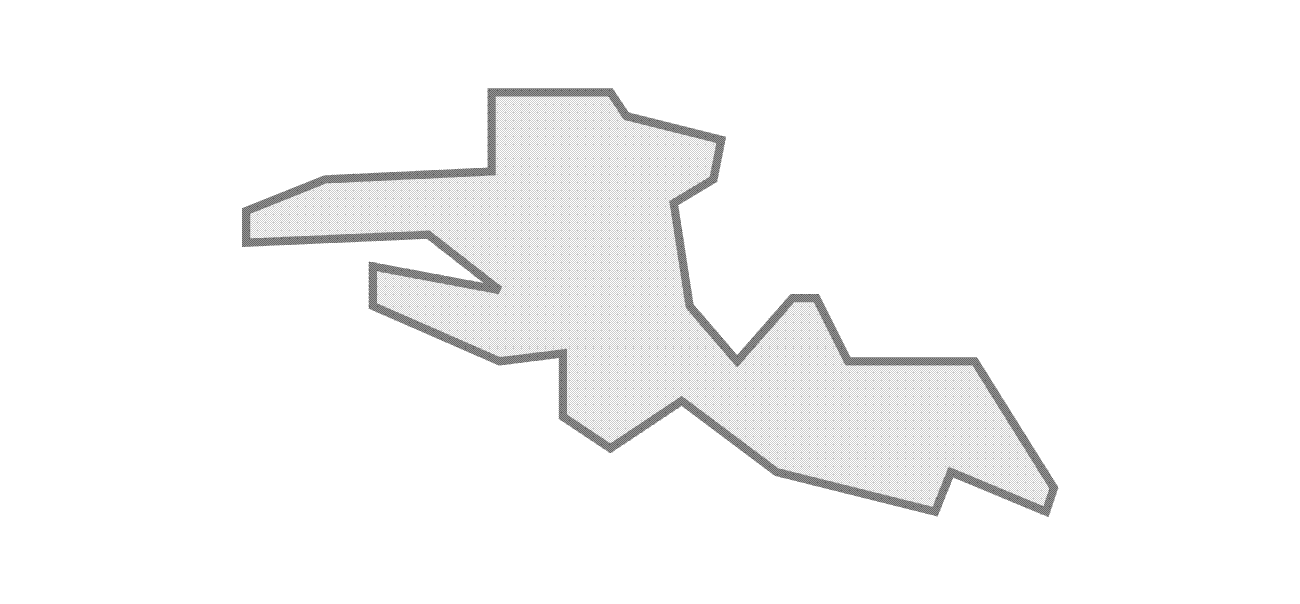

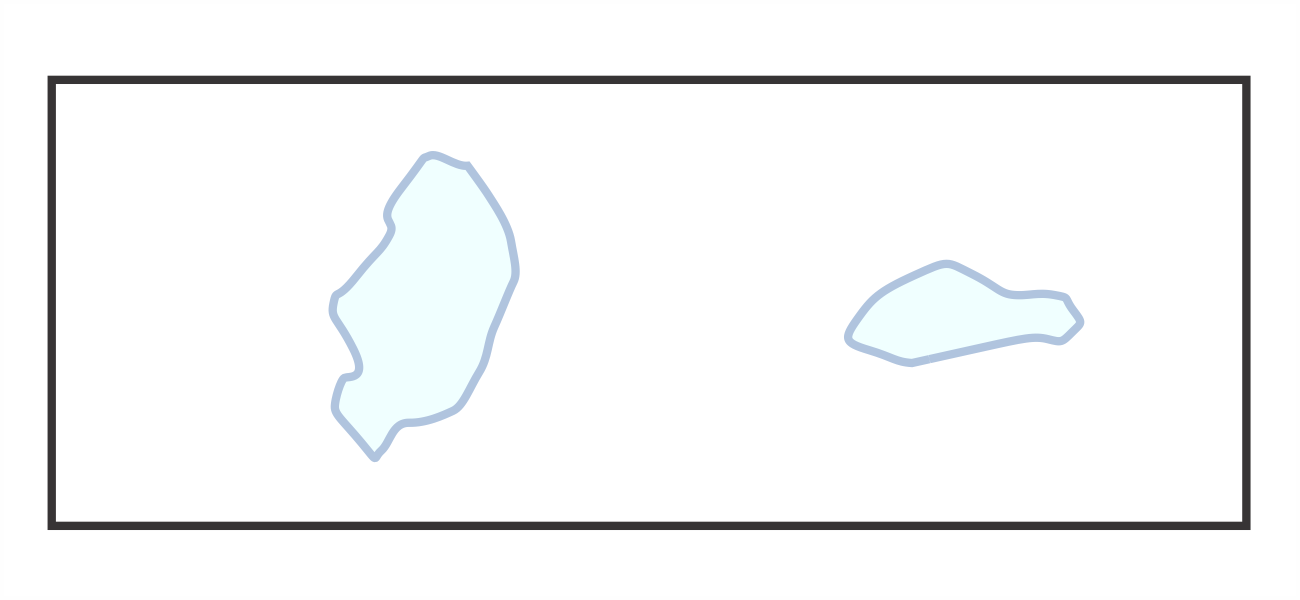

| Lakes |
 |
|---|
| City |
 |
|---|

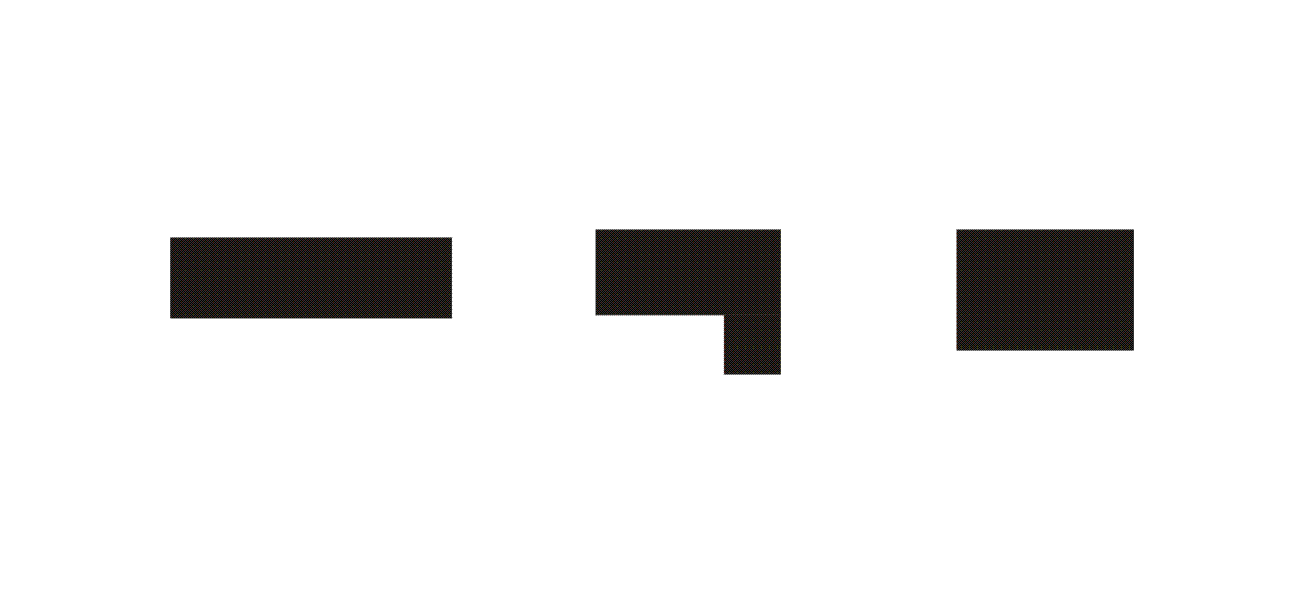

| Buildings |
 |
|---|

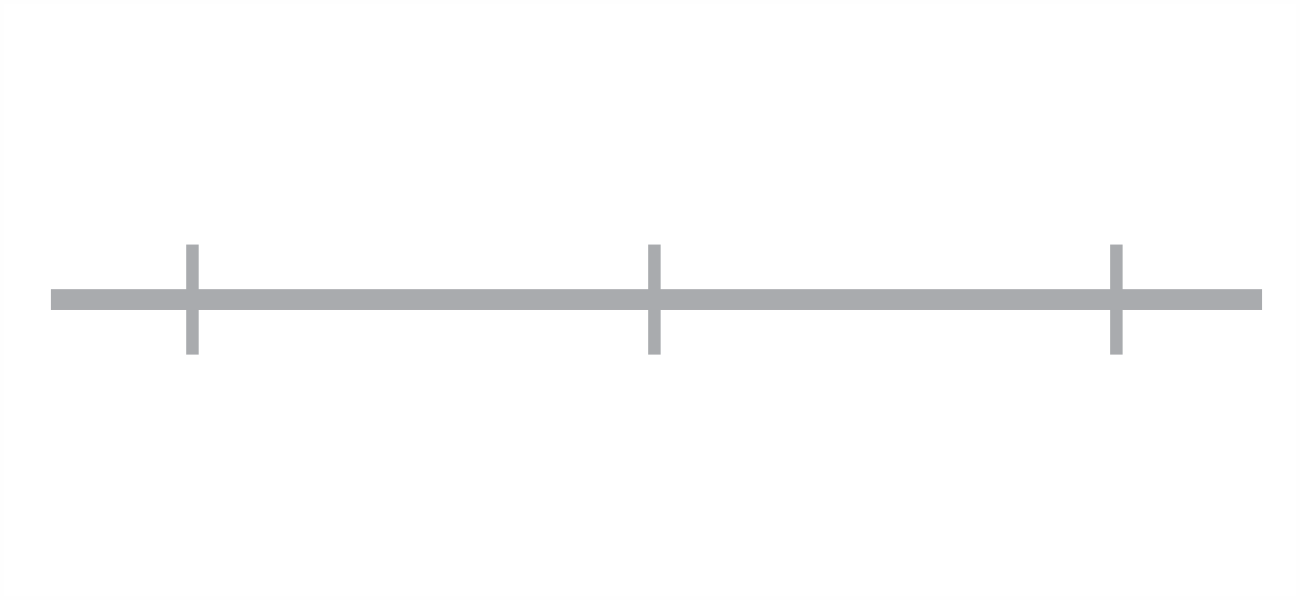

| Railroad |
 |
|---|

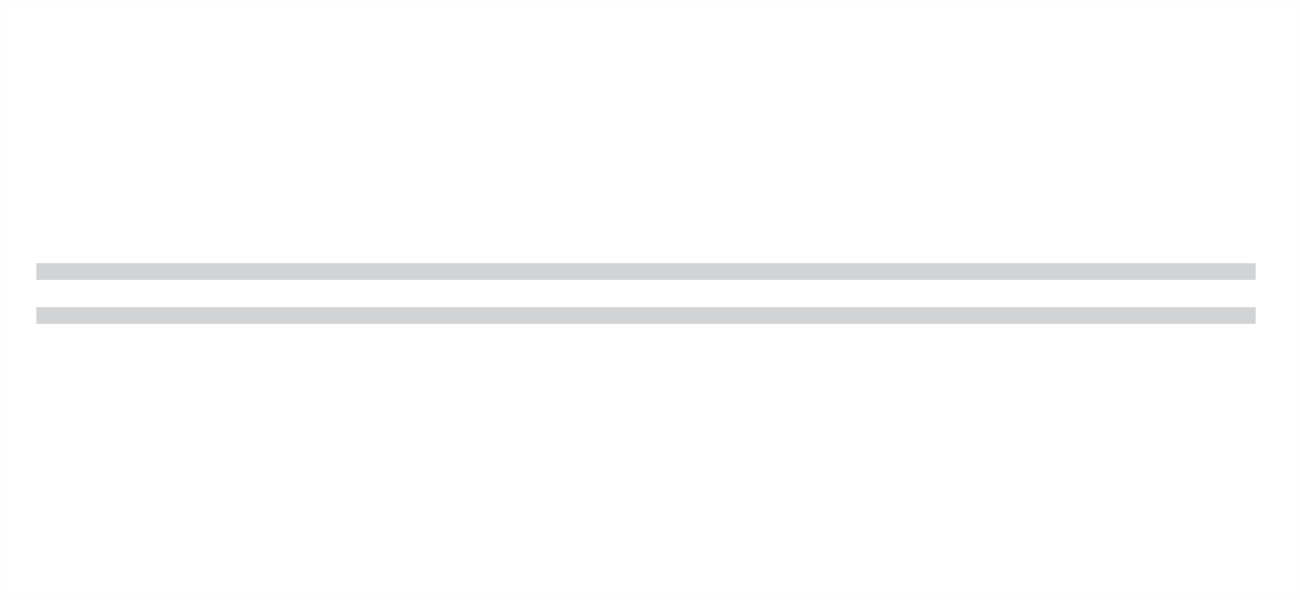

| Primary road |
 |

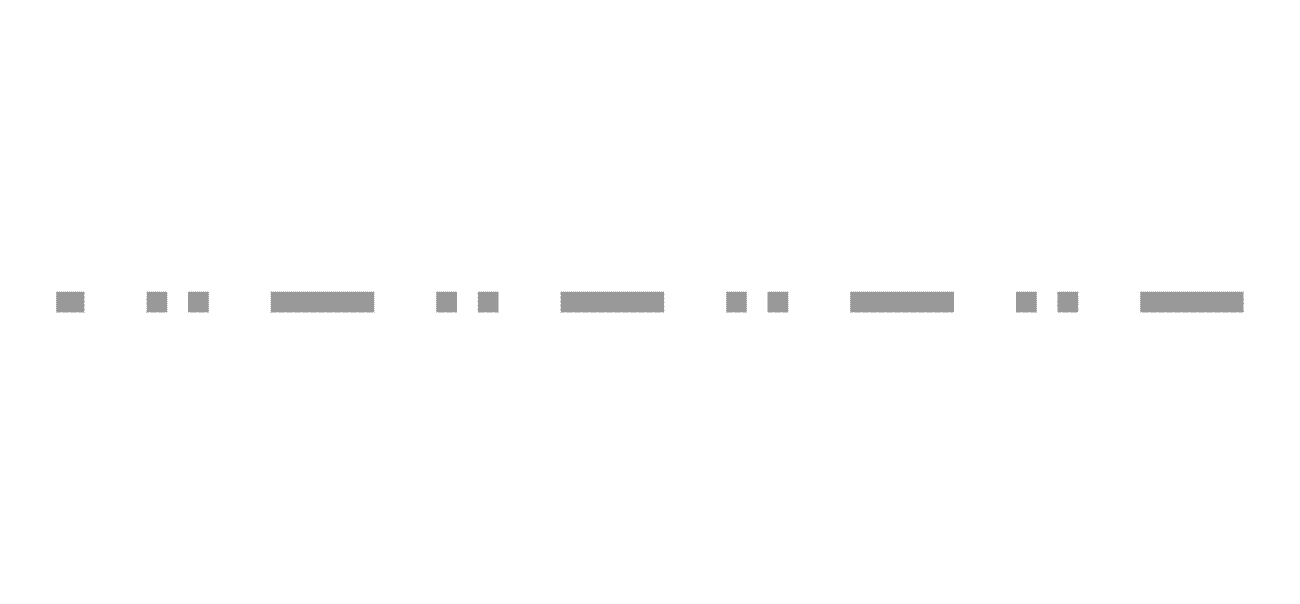

|---|
| Boundaries (international) |
 |
|---|

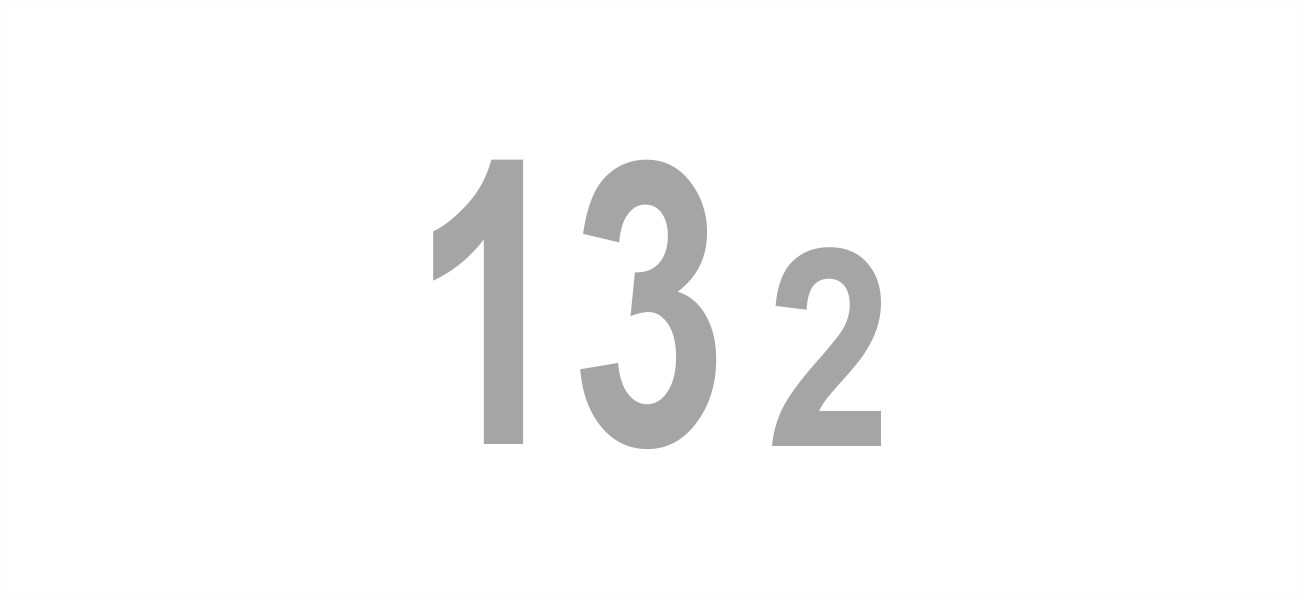

Area Minimum Altitude (AMA)
Example: 13₂ - 13200 FT |
 |
|---|
7 Miscellaneous

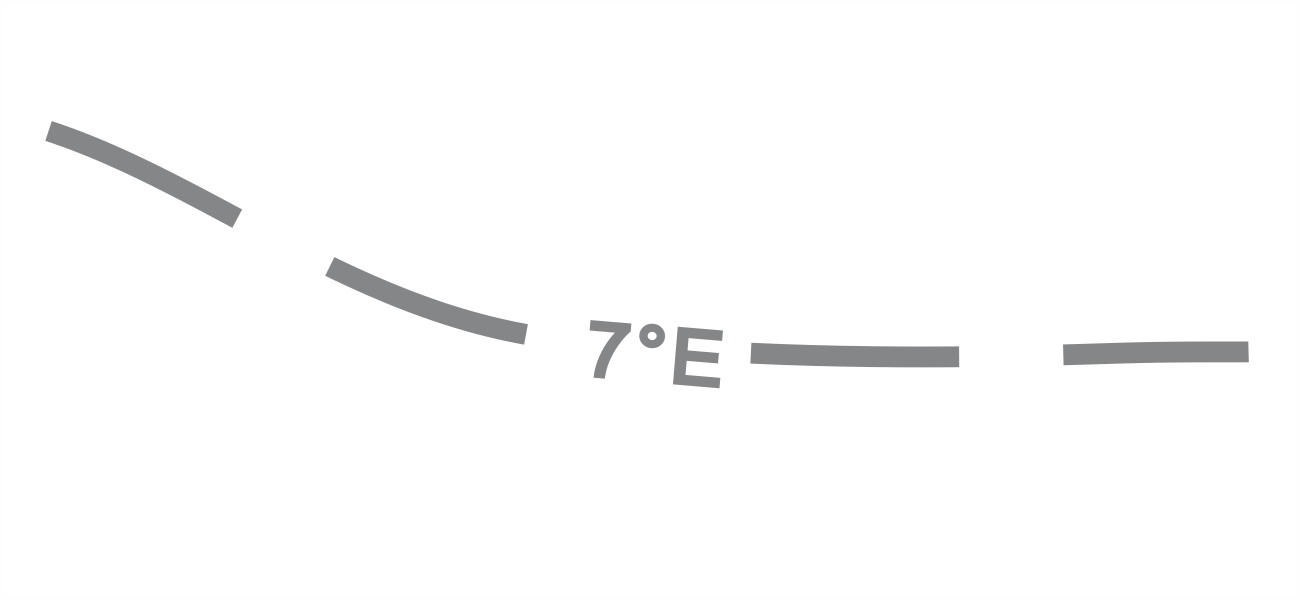

| Isogonic line or isogonal |
 |
|---|
